10 Layout

10.1 Layout Guidelines

  1. An extra trace (or stub) is created when connecting between more than two points. A trace connecting pin A6 to pin B6 will create a stub because the trace also has to go to the USB Host. Ensure that:
    • A stub created by short on pin A6 (DP) and pin B6 (DP) at Type-C receptacle does not exceed 3.5 mm.
    • A stub created by short on pin A7 (DM) and pin B7 (DM) at Type-C receptacle does not exceed 3.5 mm.
  2. A 100-nF capacitor should be placed as close as possible to the TUSB321AI VDD pin.

10.2 Layout Example

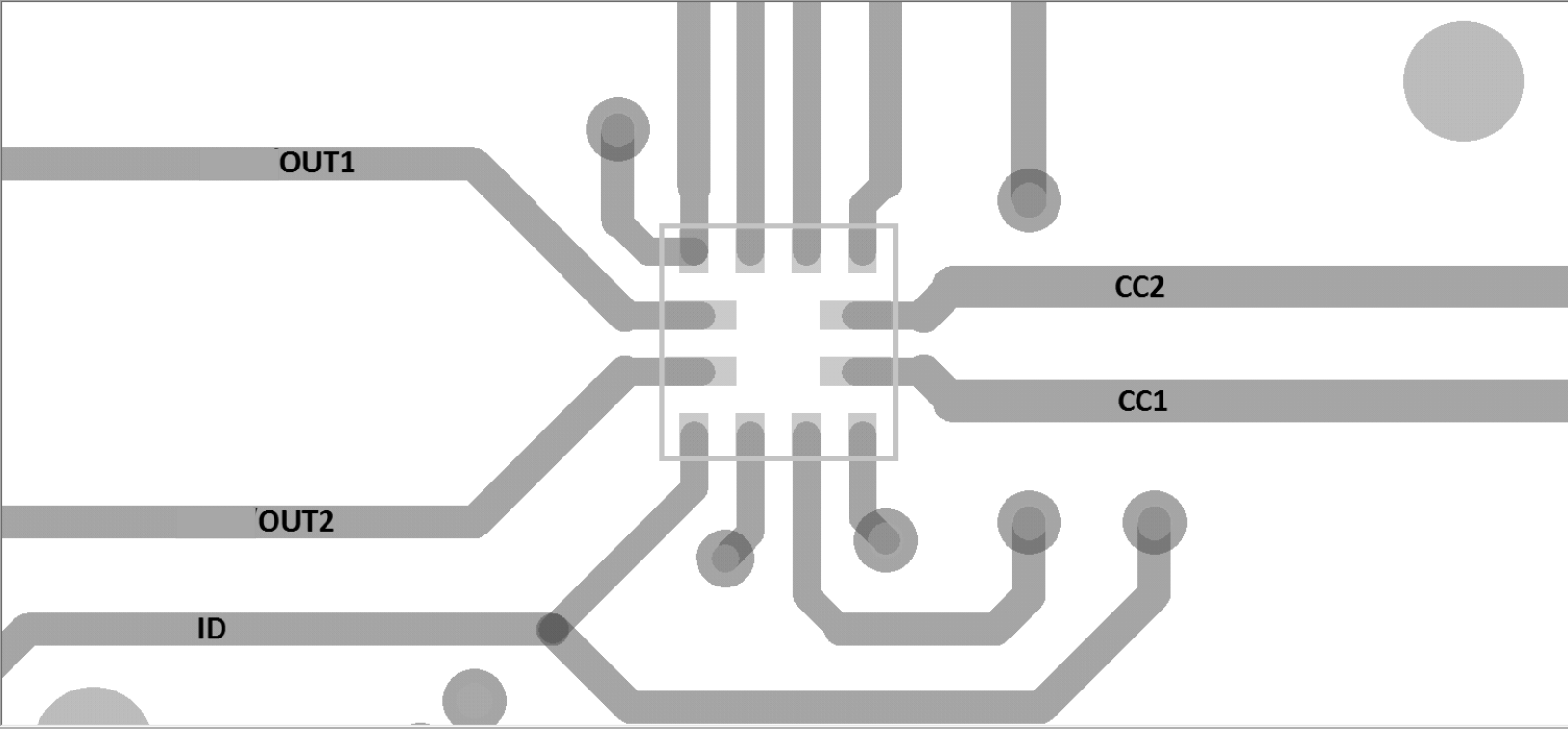

TUSB321AI layout_sllseo6_321.gif Figure 5. TUSB321AI Layout
