9.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, VOUT = 5 V, fSW = 1.1 MHz, L = 18 µH, COUT = 22 µF, TA = 25 °C
TPS560430 slvse22-stead-state-at-no-load.gif
IOUT = 0 mA FPWM Version
Figure 19. Ripple at No Load
TPS560430 ss-vin-slvse22.gif
IOUT = 600 mA FPWM Version
Figure 21. Start Up by VIN

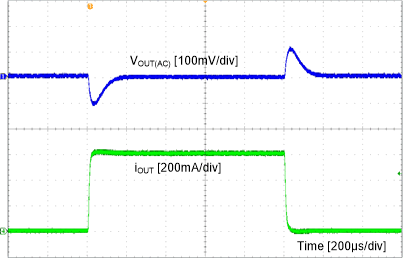

TPS560430 slvse22-load-transient.gif
IOUT = 0 to 600 mA, 100 mA / µs FPWM Version
Figure 23. Load Transient
TPS560430 slvse22-short-protection.gif
IOUT = 0 mA to short FPWM Version
Figure 25. Short Protection
TPS560430 slvse22-stead-state-at-full-load.gif
IOUT = 600 mA FPWM Version
Figure 20. Ripple at Full Load

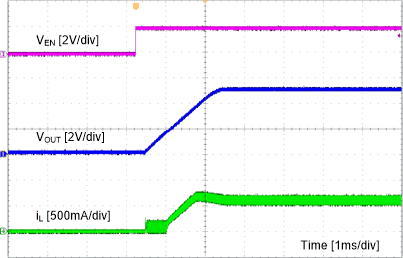

TPS560430 slvse22_startup-by-en.gif
IOUT = 600 mA FPWM Version
Figure 22. Start-Up by EN

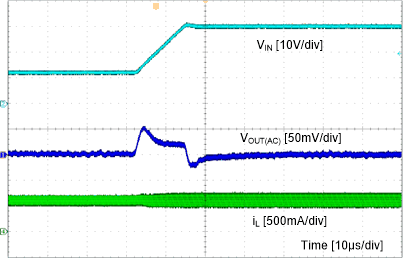

TPS560430 line-tran-slvse22.gif
VIN = 12 V to 30 V, 0.18 V / µs IOUT = 600 mA FPWM Version
Figure 24. Line Transient
TPS560430 slvse22-short-recovery.gif
1.
IOUT = short to 0 mA FPWM Version
Figure 26. Short Recovery
