6 Pin Configuration and Functions

DDA Package
8-Pin SOIC
Top View

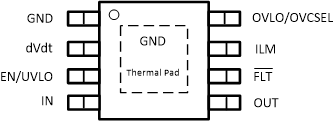

TPS2596 pinout.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
GND 1 Ground Ground
dVdt 2 Analog Output A capacitor from this pin to GND sets the output turn on slew rate. Leave this pin floating for the fastest turn on slew rate.
EN/UVLO 3 Analog Input Active High Enable for the Device. A resistor divider can be used to adjust the Undervoltage Lockout threshold. Do not leave floating.
IN 4 Power Power Input
OUT 5 Power Power Output
FLT 6 Digital Output Active Low indicator which will be pulled low when a fault is detected. It is an open-drain output that requires an external pull-up resistance.
ILM 7 Analog Output This is a dual function pin used to limit and monitor the output current. An external resistor from this pin to GND sets the output current limit. The pin voltage can also be used to monitor the output load current.
OVLO 8 Analog Input TPS25963x: A resistor divider can be used to adjust the Overvoltage Lockout threshold. Do not leave floating.
OVCSEL TPS25962x: Overvoltage Clamp level select pin. Refer to Overvoltage Clamp for more details.
Thermal pad Ground The Exposed Pad is used primarily for heat dissipation and must be connected to system ground plane for best thermal performance.
