8.3.3.2 Active Current Limiting

The load current is monitored during start-up and normal operation. When the load current exceeds the current limit ILIM programmed by RILM resistor, the device regulates the current to the set limit ILIM within tLIM. The device exits current limiting when the load current falls below ILIM. Equation 5 can be used to find the RILM value for a desired current limit.

Equation 5. TPS2596 Equation-ILIM.gif

In the current limiting state, the output voltage drops resulting in increased power dissipation in the internal FET leading to thermal shutdown if the condition persists for an extended period of time. In this case, the device either stays latched-off or starts an auto-retry cycle as explained in the Overtemperature Protection (OTP) section.

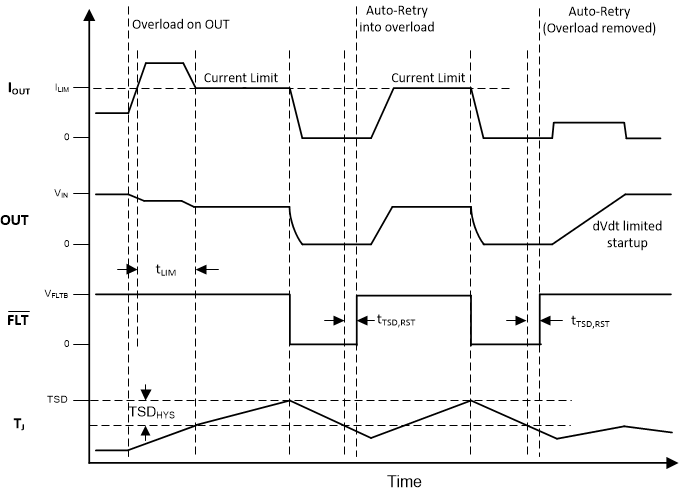

TPS2596 Timing-Diagram-CL-Retry.gifFigure 48. TPS2596x1 Overcurrent Response (Auto-retry)
TPS2596 Timing-Diagram-CL-Latch-off.gifFigure 49. TPS2596x0 Overcurrent Response (Latch-off)
