6.8 Typical AC Characteristics

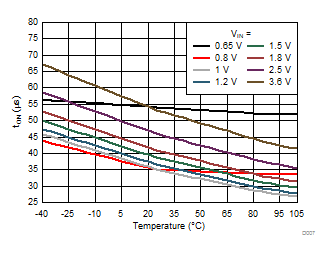

TPS22971 D007_SLVSDK7.gifFigure 5. Turn-On Time vs Temperature
TPS22971 D009_SLVSDK7.gifFigure 7. Rise Time vs Temperature
TPS22971 D013_SLVSDK7.gifFigure 9. PG Turn-Off Time vs Temperature
TPS22971 D010_SLVSDK7.gif
RL = 10 Ω CL = 0.1 μF
Figure 11. Fall Time vs Temperature
TPS22971 1p8_Rise.png
RL = 10 Ω CT = 0 pF
TA = 25°C CL = 0.1 µF
Figure 13. Turn-On Response at 1.8 VIN

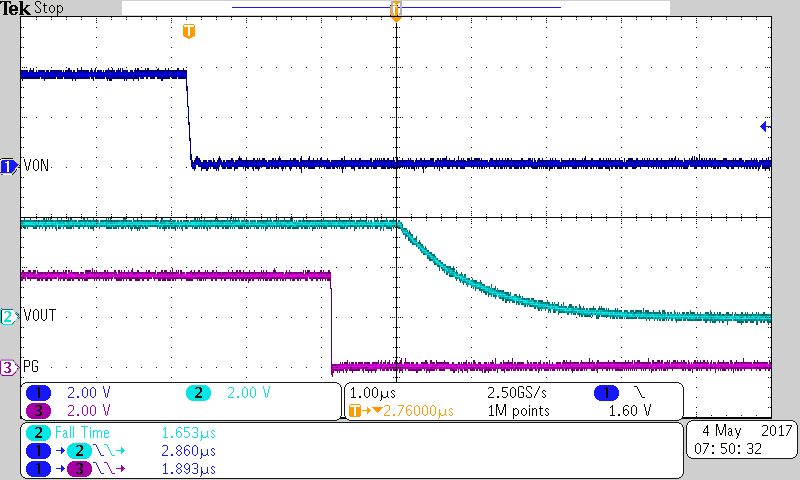

TPS22971 3p6_Fall.png
RL = 10 Ω CT = 0 pF
TA = 25°C CL = 0.1 µF
Figure 15. Turn-Off Response at 3.6 VIN
TPS22971 0p65_Fall.png
RL = 10 Ω CIN = 0 pF
TA = 25°C CL = 0.1 µF
Figure 17. Turn-Off Response at 0.65 VIN
TPS22971 3p6_cout133_ct1000.png
CT = 1000 pF CL = 133 µF
RL = OPEN TA = 25°C
Figure 19. High Inrush Current at 3.6 VIN
TPS22971 0p65_cout133_ct1000.png
CT = 1000 pF CL = 133 µF
RL = OPEN TA = 25°C
Figure 21. High Inrush Current at 0.65 VIN

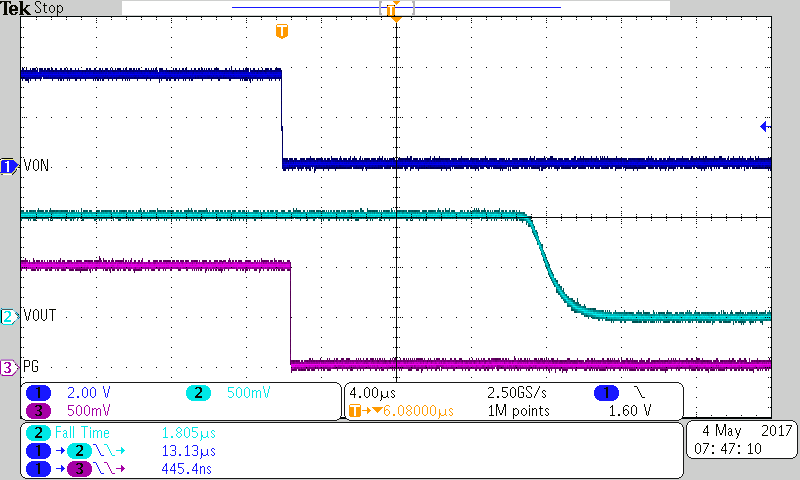

TPS22971 1p0_Fall_Cin10.png
CIN = 0 pF CL = 0.1 µF
RL = 10 Ω TA = 25°C
Figure 23. Fast Turn-Off Response

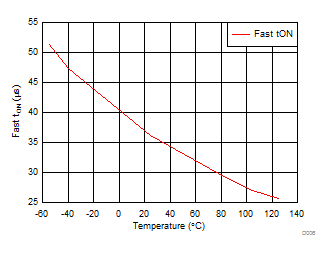

TPS22971 D006_SLVSDK7.gif
VIN = 1V CT = 0 pF CL = 0.1 µF RL = 10 Ω
Figure 6. Fast Turn-On Time vs Temperature
TPS22971 D012_SLVSDK7.gifFigure 8. PG Turn-On Time vs Temperature

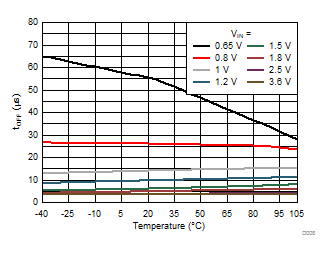

TPS22971 D008_SLVSDK7.gifFigure 10. Turn-Off Time vs Temperature
TPS22971 3p6_Rise.png
RL = 10 Ω CT = 0 pF
TA = 25°C CL = 0.1 µF
Figure 12. Turn-On Response at 3.6 VIN
TPS22971 0p65_Rise.png
RL = 10 Ω CT = 0 pF
TA = 25°C CL = 0.1 µF
Figure 14. Turn-On Response at 0.65 VIN
TPS22971 1p8_Fall.png
RL = 10 Ω CT = 0 pF
TA = 25°C CL = 0.1 µF
Figure 16. Turn-Off Response at 1.8 VIN
TPS22971 3p6_cout33_ct1000.png
CT = 1000 pF CL = 33 µF
RL = OPEN TA = 25°C
Figure 18. Low Inrush Current at 3.6 VIN
TPS22971 0p65_cout33_ct1000.png
CT = 1000 pF CL = 33 µF
RL = OPEN TA = 25°C
Figure 20. Low Inrush Current at 0.65 VIN
TPS22971 1p0_Rise_Cin10.png
CT = 0 pF CL = 0.1 µF
RL = 10 Ω TA = 25°C
Figure 22. Fast Turn-On Response
