10.5.3 Application Curves

See the oscilloscope captures below for an example of how the CT capacitor can be used to reduce inrush current for VIN = 12 V. See the Adjustable Rise Time (CT) section for rise times for corresponding CT values.

TPS22810 tps22810_Fig35_VIN_12V_CT_0pF_CIN_1.gif

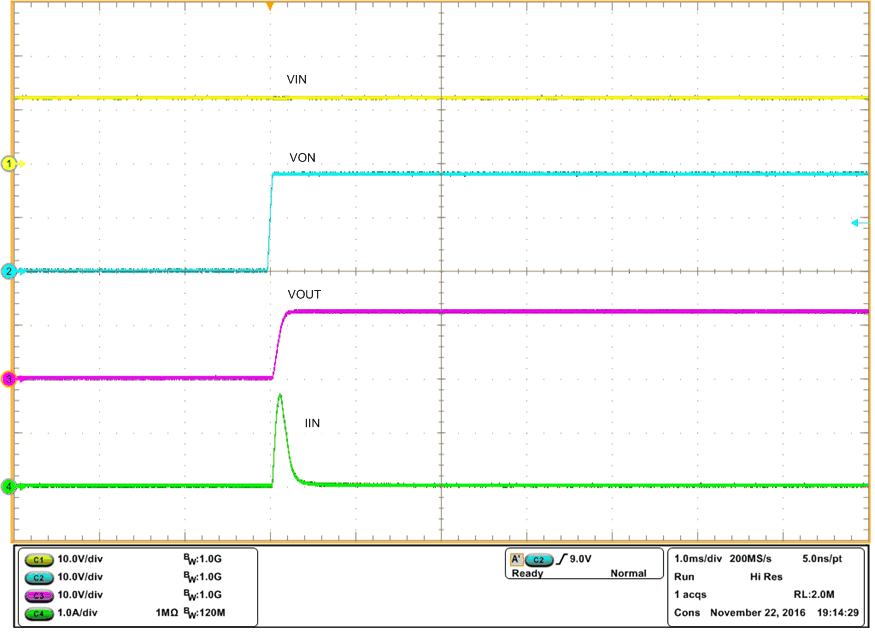

Figure 28. TPS22810 Inrush Current With
CL = 22 µF, CT = 0 pF
TPS22810 tps22810_Fig37_VIN_12V_CT_27000pF_C.gif
Figure 30. TPS22810 Inrush Current
With CL = 22 µF, CT = 27000 pF
TPS22810 tps22810_Fig39_VIN_12V_CT_4700pF_CI.gif

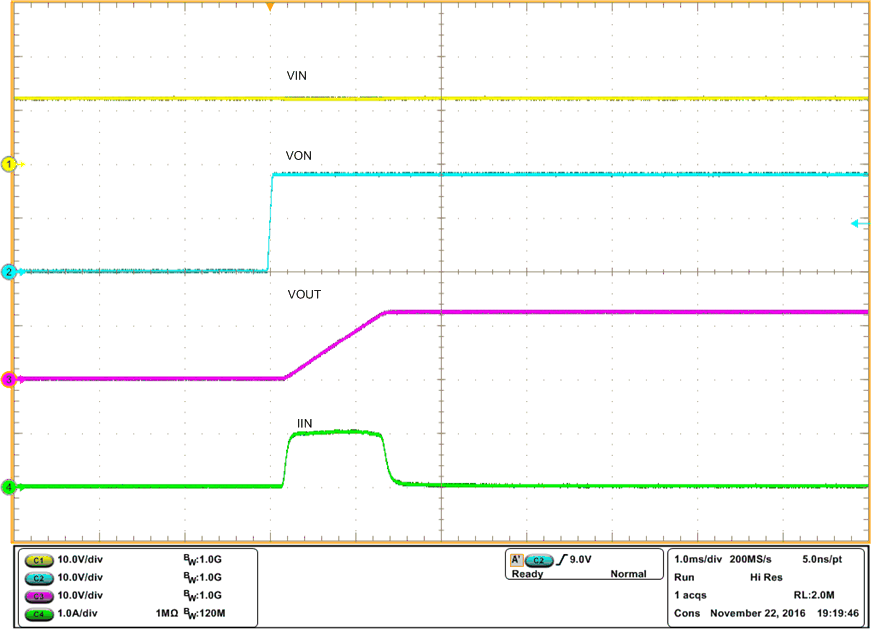

Figure 32. TPS22810 Inrush Current
With CL = 100 µF, CT = 4700 pF
TPS22810 tps22810_Fig36_VIN_12V_CT_4700pF_CI.gif
Figure 29. TPS22810 Inrush Current
with CL = 22 µF, CT = 4700 pF
TPS22810 tps22810_Fig38_VIN_12V_CT_0pF_COUT_.gif

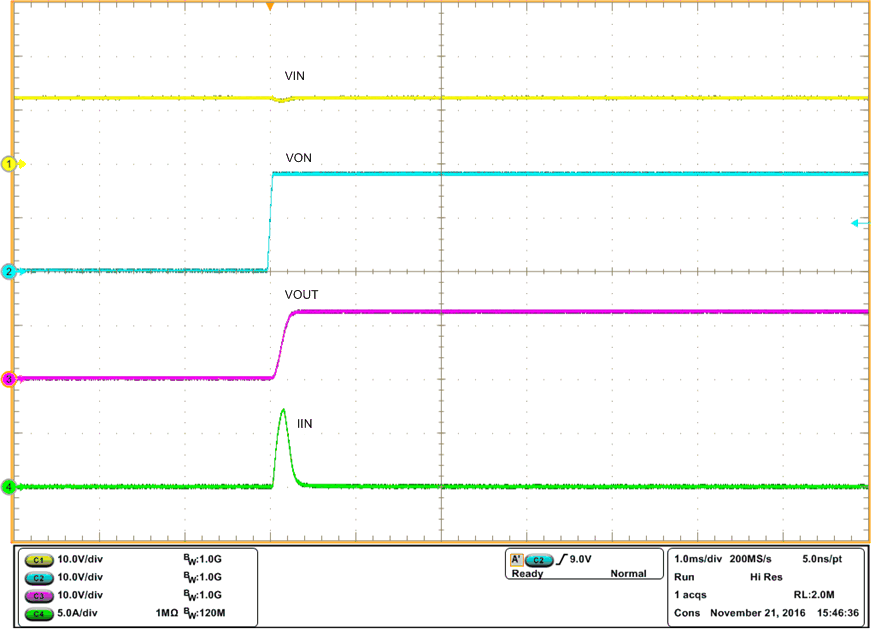

Figure 31. TPS22810 Inrush Current
With CL = 100 µF, CT = 0 pF
TPS22810 tps22810_Fig38_VIN_12V_CT_27000pF_C.gif

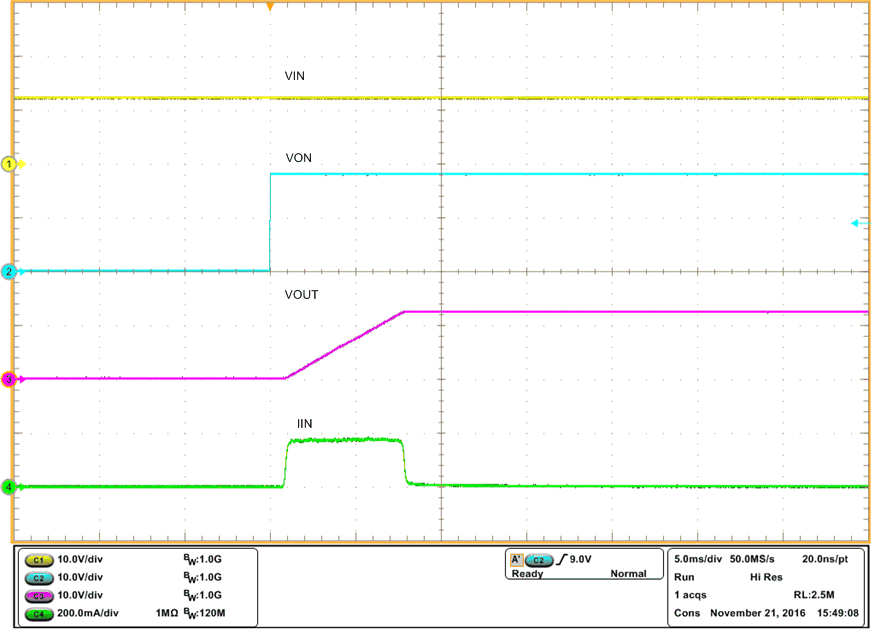

Figure 33. TPS22810 Inrush Current
With CL = 100 µF, CT = 27000 pF
