Layout

Layout Guidelines

  • The optimum placement is as close to the connector as possible.
    • EMI during an ESD event can couple from the trace being struck to other nearby unprotected traces, resulting in early system failures.
    • The PCB designer must minimize the possibility of EMI coupling by keeping any unprotected traces away from the protected traces which are between the TVS and the connector.
  • Route the protected traces as straight as possible.
  • Eliminate any sharp corners on the protected traces between the TVS and the connector by using rounded corners with the largest radii possible.
    • Electric fields tend to build up on corners, increasing EMI coupling.

Layout Examples

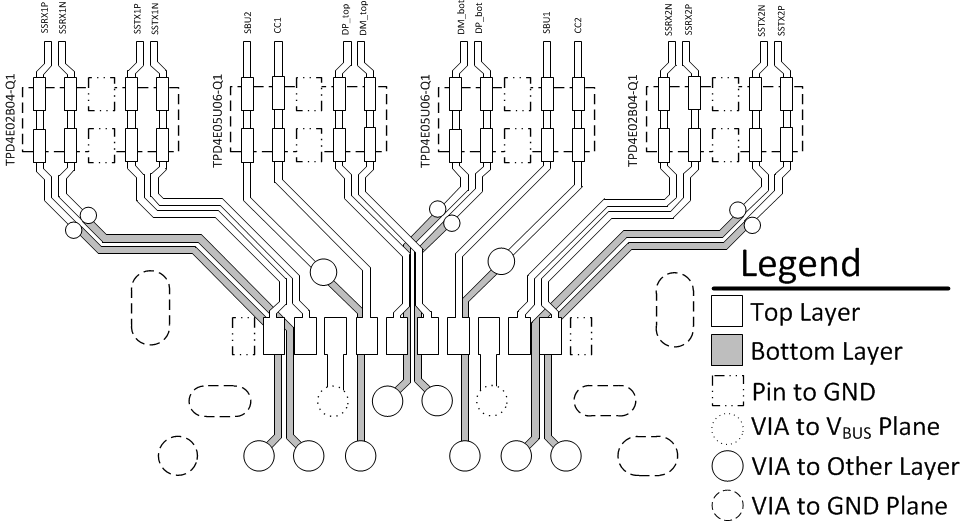

TPD4E02B04-Q1 layout.gif Figure 24. USB Type-C Mid-Mount, Hybrid Connector with One-Sided ESD Layout

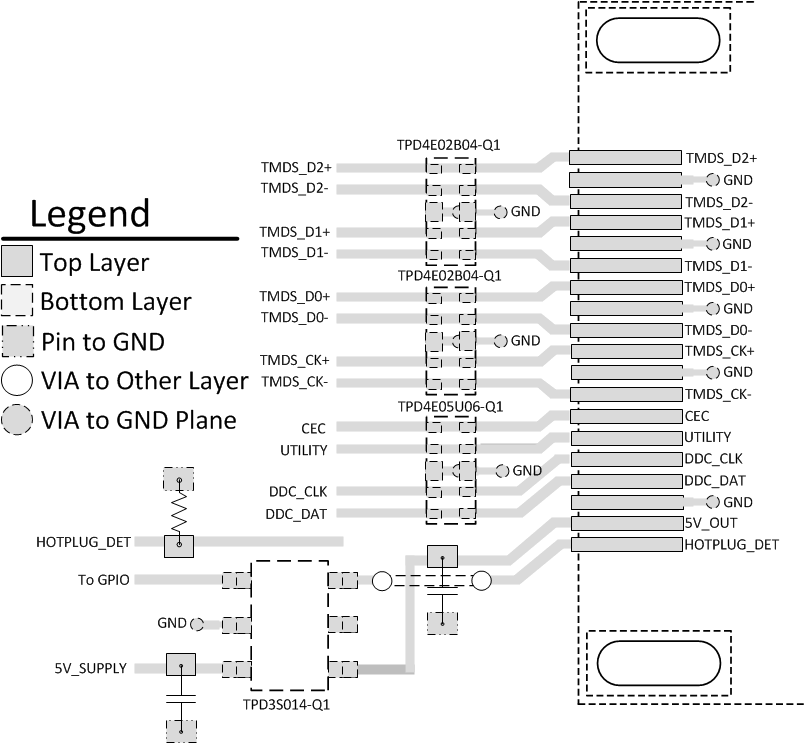

TPD4E02B04-Q1 slvsdz2_hdmi2_Layout.gif Figure 25. HDMI2.0 Type-A Transmitter Port Layout
