7.6 Timing Requirements for I2C Interface Signals

over recommended operating conditions (unless otherwise noted)
MIN NOM MAX UNIT
f(SCL) SCL clock frequency 400 kHz
tr Rise time for both SDA and SCL signals 300 ns
tf Fall time for both SDA and SCL signals 300 ns
tw(H) SCL pulse duration, high 0.6 μs
tw(L) SCL pulse duration, low 1.3 μs
tsu(2) Setup time for START condition 0.6 μs
th(2) START condition hold time before generation of first clock pulse 0.6 μs
tsu(1) Data setup time 100 ns
th(1) Data hold time 0(1) ns
tsu(3) Setup time for STOP condition 0.6 μs
C(B) Load capacitance for each bus line 400 pF
(1) A device must internally provide a hold time of at least 300 ns for the SDA signal to bridge the undefined region of the falling edge of SCL.

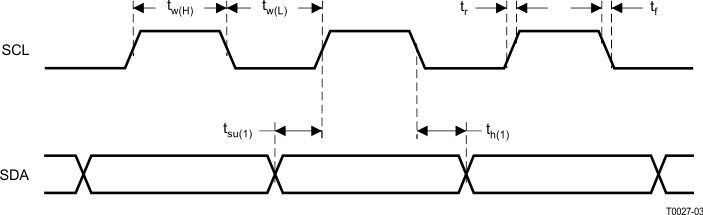

TAS5411-Q1 T0027-03_SLOS814.gifFigure 1. SCL and SDA Timing

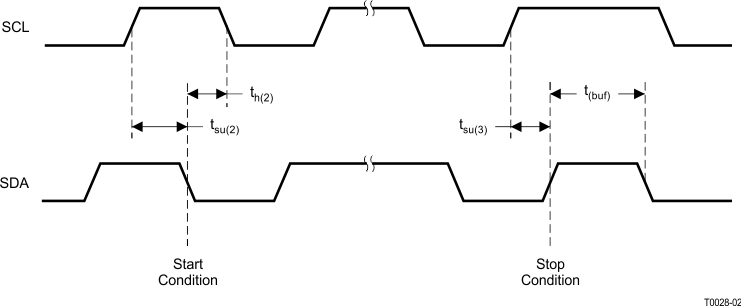

TAS5411-Q1 T0028-02_SLOS814.gifFigure 2. Timing for Start and Stop Conditions
