Features

  • Available in the Texas Instruments NanoStar™ Package
  • Low Static-Power Consumption
    (ICC = 0.9 µA Maximum)
  • Low Dynamic-Power Consumption
    (Cpd = 4 pF Typical at 3.3 V)
  • Low Input Capacitance (CI = 1.5 pF Typical)
  • Low Noise – Overshoot and Undershoot
    < 10% of VCC
  • Input-Disable Feature Allows Floating Input Conditions
  • Ioff Supports Partial-Power-Down Mode Operation
  • Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
  • Wide Operating VCC Range of 0.8 V to 3.6 V
  • 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
  • tpd = 4.6 ns Maximum at 3.3 V

Applications

  • Audio Dock: Portable
  • BluRay™ Players and Home Theaters
  • Personal Digital Assistant (PDA)
  • Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
  • Solid-State Drive (SSD): Client and Enterprise
  • TV: LCD/Digital and High-Definition (HDTV)
  • Tablet: Enterprise
  • Wireless Headsets, Keyboards, and Mice

Description

The SN74AUP1G125 bus buffer gate is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. This device has the input-disable feature, which allows floating input signals.

To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
SN74AUP1G125DBV SOT-23 (5) 2.90 mm × 1.60 mm
SN74AUP1G125DCK SC70 (5) 2.00 mm × 1.25 mm
SN74AUP1G125DRL SOT (5) 1.60 mm × 1.20 mm
SN74AUP1G125DRY SON (6) 1.45 mm × 1.00 mm
SN74AUP1G125DSF 1.00 mm × 1.00 mm
SN74AUP1G125YFP DSBGA (6) 0.76 mm × 1.16 mm
SN74AUP1G125YZP DSBGA (5) 0.89 mm × 1.39 mm
SN74AUP1G125YZT DSBGA (5) 0.89 mm × 1.39 mm
SN74AUP1G125DPW X2SON (5) 0.80 mm × 0.80 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

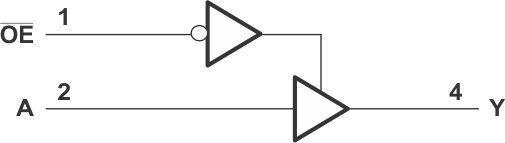

Simplified Schematic

SN74AUP1G125 LOGIC_CES595.gif
