OpenLDI Input Frame and Color Bit Mapping Select

The DS90UB947-Q1 can be configured to accept 24-bit color (8-bit RGB) with 2 different mapping schemes, shown in Figure 13 and Figure 14. Each frame corresponds to a single pixel clock (PCLK) cycle. The LVDS clock input to CLK± follows a 4:3 duty cycle scheme, with each 28-bit pixel frame starting with two LVDS bit clock periods high, three low, and ending with two high. The mapping scheme is controlled by MAPSEL strap option or by Register (Table 10).

DS90UB947-Q1 947_LVDS_bit_map_2.gifFigure 13. 24-Bit Color Dual Pixel Mapping: MSBs on D3/D7 (OpenLDI Mapping)

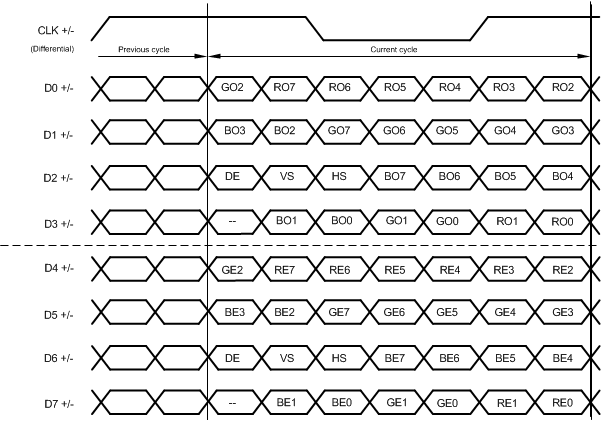

DS90UB947-Q1 947_LVDS_bit_map.gifFigure 14. 24-Bit Color Dual Pixel Mapping: LSBs on D3/D7 (SPWG Mapping)
DS90UB947-Q1 947_LVDS_24b_map1.gifFigure 15. 24-Bit Color Single Pixel Mapping: MSBs on D3 (OpenLDI Mapping)
DS90UB947-Q1 947_LVDS_24b_map0.gifFigure 16. 24-Bit Color Single Pixel Mapping: LSBs on D3 (SPWG Mapping)
