5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 30 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.1 1.5 1.9 V
RDS(on) Drain-to-Source
On-Resistance		 VGS = 4.5 V, ID = 10 A 8.2 9.4 mΩ
VGS = 10 V, ID = 10 A 6.3 7.3 mΩ
gfs Transconductance VDS = 3 V, ID = 10 A 48 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 15 V, ƒ = 1 MHz 1150 1590 pF
Coss Output Capacitance 134 174 pF
Crss Reverse Transfer Capacitance 56 73 pF
RG Series Gate Resistance 1.8 3.6 Ω
Qg Gate Charge Total (4.5 V) VDS = 15 V, ID = 10 A 7.9 10.3 nC
Qg Gate Charge Total (10 V) 17.1 22.2
Qgd Gate Charge Gate-to-Drain 1.7 nC
Qgs Gate Charge Gate-to-Source 3.3 nC
Qg(th) Gate Charge at Vth 1.6 nC
Qoss Output Charge VDS = 15 V, VGS = 0 V 4.2 nC
td(on) Turn On Delay Time VDS = 15 V, VGS = 10 V,
IDS = 10 A, RG = 0 Ω		 2 ns
tr Rise Time 6 ns
td(off) Turn Off Delay Time 13 ns
tf Fall Time 1 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 10 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse Recovery Charge VDS= 15 V, IF = 10 A,
di/dt = 300 A/μs		 4.4 nC
trr Reverse Recovery Time 6 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance (1) 4.2 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 60
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inches × 1.5 inches
(3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.

CSD17578Q3A m0161-01_lps202.gif
Max RθJA = 60°C/W when mounted on 1 inch2 (6.45 cm2) of
2-oz. (0.071-mm thick) Cu.
CSD17578Q3A m0161-02_lps202.gif
Max RθJA = 145°C/W when mounted on a minimum pad area of 2-oz. (0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

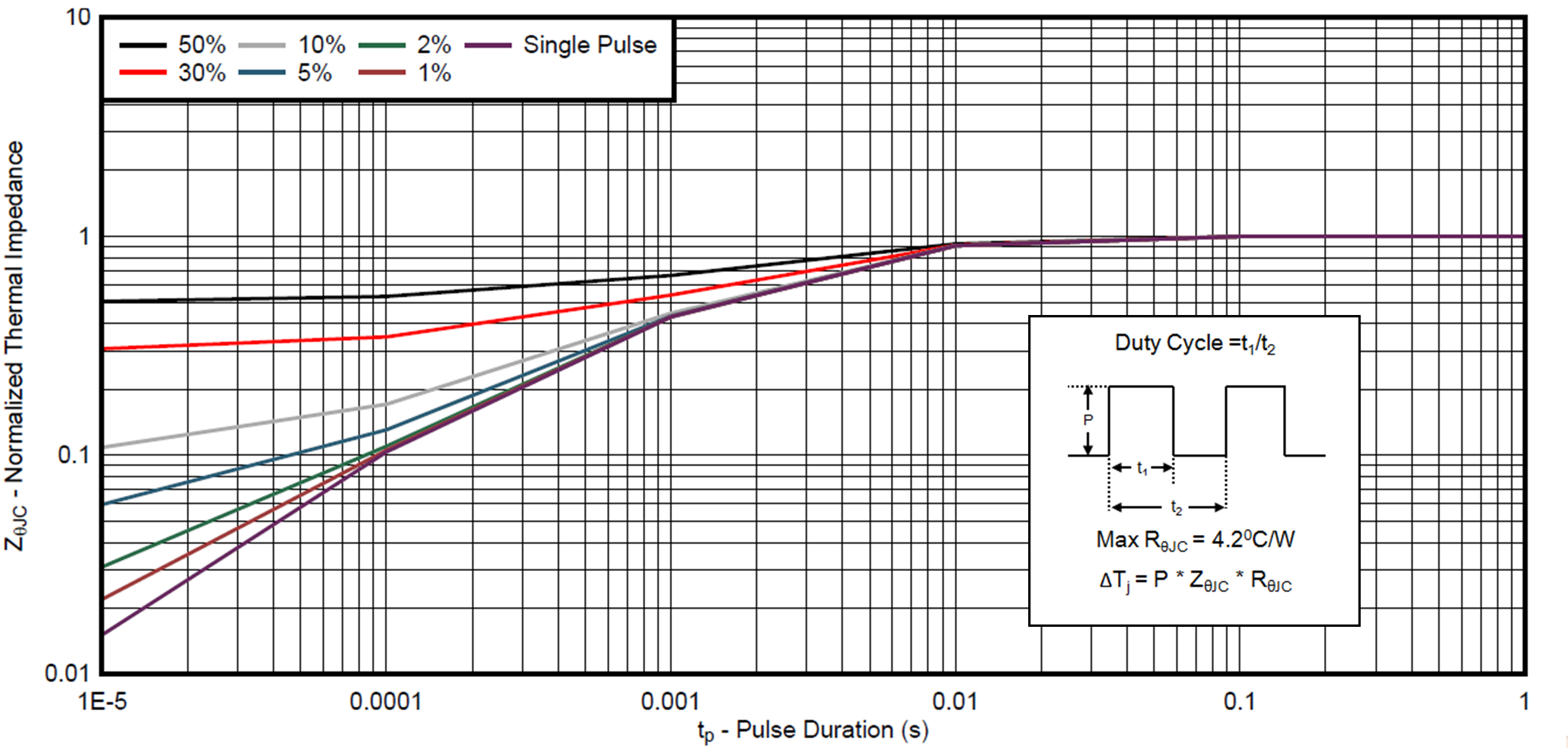

CSD17578Q3A D001_SLPS525_mod3.png
Figure 1. Transient Thermal Impedance
CSD17578Q3A D002_SLPS525.gif

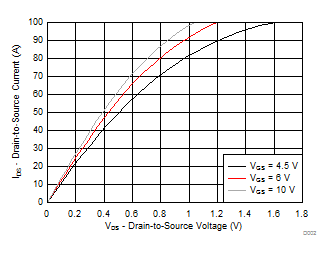

Figure 2. Saturation Characteristics

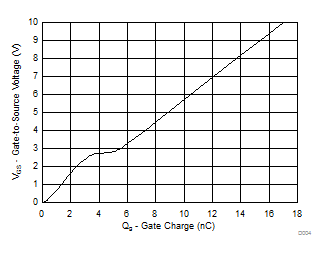

CSD17578Q3A D004_SLPS525.gif
ID = 10 A VDS = 15 V
Figure 4. Gate Charge

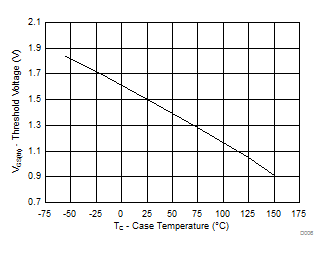

CSD17578Q3A D006_SLPS525.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature

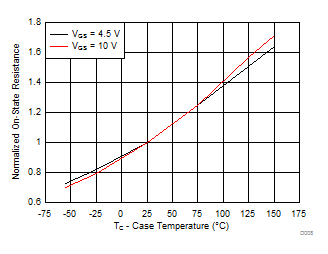

CSD17578Q3A D008_SLPS525.gif
ID = 10 A
Figure 8. Normalized On-State Resistance vs Temperature

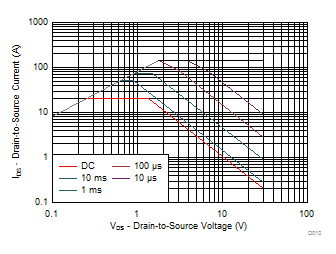

CSD17578Q3A D010_SLPS525.gif
Single Pulse, Max RθJC = 4.2°C/W
Figure 10. Maximum Safe Operating Area (SOA)

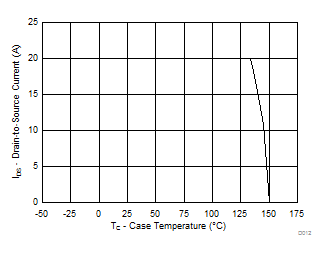

CSD17578Q3A D012_SLPS525.gif
Figure 12. Maximum Drain Current vs Temperature

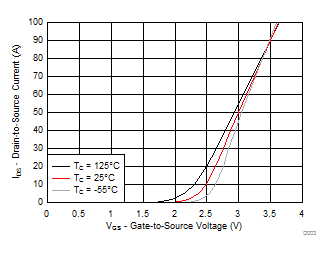

CSD17578Q3A D003_SLPS525.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD17578Q3A D005_SLPS525.gif
Figure 5. Capacitance
CSD17578Q3A D007_SLPS525.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage

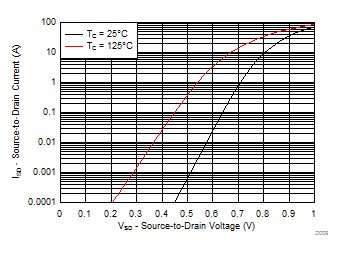

CSD17578Q3A D009_SLPS525.gif
Figure 9. Typical Diode Forward Voltage
CSD17578Q3A D011_SLPS525.gif
Figure 11. Single Pulse Unclamped Inductive Switching
