ZHCSF38G March   2016  – May 2018 AM5716 , AM5718

PRODUCTION DATA.

  1. 器件概述
    1. 1.1 特性
    2. 1.2 应用
    3. 1.3 说明
    4. 1.4 功能方框图
  2. 修订历史记录
  3. Device Comparison
    1. 3.1 Device Comparison Table
  4. Terminal Configuration and Functions
    1. 4.1 Terminal Assignment
      1. 4.1.1 Unused Balls Connection Requirements
    2. 4.2 Ball Characteristics
    3. 4.3 Multiplexing Characteristics
    4. 4.4 Signal Descriptions
      1. 4.4.1  Video Input Ports (VIP)
      2. 4.4.2  Display Subsystem – Video Output Ports
      3. 4.4.3  Display Subsystem – High-Definition Multimedia Interface (HDMI)
      4. 4.4.4  Camera Serial Interface 2 CAL bridge (CSI2)
      5. 4.4.5  External Memory Interface (EMIF)
      6. 4.4.6  General-Purpose Memory Controller (GPMC)
      7. 4.4.7  Timers
      8. 4.4.8  Inter-Integrated Circuit Interface (I2C)
      9. 4.4.9  HDQ / 1-Wire Interface (HDQ1W)
      10. 4.4.10 Universal Asynchronous Receiver Transmitter (UART)
      11. 4.4.11 Multichannel Serial Peripheral Interface (McSPI)
      12. 4.4.12 Quad Serial Peripheral Interface (QSPI)
      13. 4.4.13 Multichannel Audio Serial Port (McASP)
      14. 4.4.14 Universal Serial Bus (USB)
      15. 4.4.15 SATA
      16. 4.4.16 Peripheral Component Interconnect Express (PCIe)
      17. 4.4.17 Controller Area Network Interface (DCAN)
      18. 4.4.18 Ethernet Interface (GMAC_SW)
      19. 4.4.19 Media Local Bus (MLB) Interface
      20. 4.4.20 eMMC/SD/SDIO
      21. 4.4.21 General-Purpose Interface (GPIO)
      22. 4.4.22 Keyboard controller (KBD)
      23. 4.4.23 Pulse Width Modulation (PWM) Interface
      24. 4.4.24 Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
      25. 4.4.25 Test Interfaces
      26. 4.4.26 System and Miscellaneous
        1. 4.4.26.1 Sysboot
        2. 4.4.26.2 Power, Reset, and Clock Management (PRCM)
        3. 4.4.26.3 Real-Time Clock (RTC) Interface
        4. 4.4.26.4 System Direct Memory Access (SDMA)
        5. 4.4.26.5 Interrupt Controllers (INTC)
        6. 4.4.26.6 Observability
      27. 4.4.27 Power Supplies
  5. Specifications
    1. 5.1 Absolute Maximum Ratings
    2. 5.2 ESD Ratings
    3. 5.3 Power on Hours (POH) Limits
    4. 5.4 Recommended Operating Conditions
    5. 5.5 Operating Performance Points
      1. 5.5.1 AVS and ABB Requirements
      2. 5.5.2 Voltage And Core Clock Specifications
      3. 5.5.3 Maximum Supported Frequency
    6. 5.6 Power Consumption Summary
    7. 5.7 Electrical Characteristics
      1. 5.7.1  LVCMOS DDR DC Electrical Characteristics
      2. 5.7.2  HDMIPHY DC Electrical Characteristics
      3. 5.7.3  Dual Voltage LVCMOS I2C DC Electrical Characteristics
      4. 5.7.4  IQ1833 Buffers DC Electrical Characteristics
      5. 5.7.5  IHHV1833 Buffers DC Electrical Characteristics
      6. 5.7.6  LVCMOS OSC Buffers DC Electrical Characteristics
      7. 5.7.7  LVCMOS CSI2 DC Electrical Characteristics
      8. 5.7.8  BMLB18 Buffers DC Electrical Characteristics
      9. 5.7.9  BC1833IHHV Buffers DC Electrical Characteristics
      10. 5.7.10 USBPHY DC Electrical Characteristics
      11. 5.7.11 Dual Voltage SDIO1833 DC Electrical Characteristics
      12. 5.7.12 Dual Voltage LVCMOS DC Electrical Characteristics
      13. 5.7.13 SATAPHY DC Electrical Characteristics
      14. 5.7.14 SERDES DC Electrical Characteristics
    8. 5.8 Thermal Characteristics
      1. 5.8.1 Package Thermal Characteristics
    9. 5.9 Power Supply Sequences
  6. Clock Specifications
    1. 6.1 Input Clock Specifications
      1. 6.1.1 Input Clock Requirements
      2. 6.1.2 System Oscillator OSC0 Input Clock
        1. 6.1.2.1 OSC0 External Crystal
        2. 6.1.2.2 OSC0 Input Clock
      3. 6.1.3 Auxiliary Oscillator OSC1 Input Clock
        1. 6.1.3.1 OSC1 External Crystal
        2. 6.1.3.2 OSC1 Input Clock
      4. 6.1.4 RTC Oscillator Input Clock
        1. 6.1.4.1 RTC Oscillator External Crystal
        2. 6.1.4.2 RTC Oscillator Input Clock
        3. 6.1.4.3 RC On-die Oscillator Clock
    2. 6.2 DPLLs, DLLs Specifications
      1. 6.2.1 DPLL Characteristics
      2. 6.2.2 DLL Characteristics
  7. Timing Requirements and Switching Characteristics
    1. 7.1  Timing Test Conditions
    2. 7.2  Interface Clock Specifications
      1. 7.2.1 Interface Clock Terminology
      2. 7.2.2 Interface Clock Frequency
    3. 7.3  Timing Parameters and Information
      1. 7.3.1 Parameter Information
        1. 7.3.1.1 1.8V and 3.3V Signal Transition Levels
        2. 7.3.1.2 1.8V and 3.3V Signal Transition Rates
        3. 7.3.1.3 Timing Parameters and Board Routing Analysis
    4. 7.4  Recommended Clock and Control Signal Transition Behavior
    5. 7.5  Virtual and Manual I/O Timing Modes

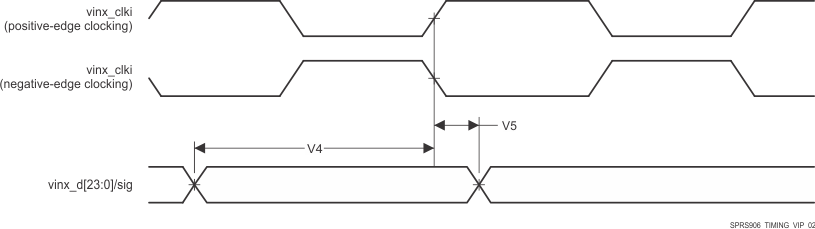

    6. 7.6  Video Input Ports (VIP)
    7. 7.7  Display Subsystem - Video Output Ports
    8. 7.8  Display Subsystem - High-Definition Multimedia Interface (HDMI)
    9. 7.9  Camera Serial Interface 2 CAL bridge (CSI2)
      1. 7.9.1 CSI-2 MIPI D-PHY
    10. 7.10 External Memory Interface (EMIF)
    11. 7.11 General-Purpose Memory Controller (GPMC)
      1. 7.11.1 GPMC/NOR Flash Interface Synchronous Timing
      2. 7.11.2 GPMC/NOR Flash Interface Asynchronous Timing
      3. 7.11.3 GPMC/NAND Flash Interface Asynchronous Timing
    12. 7.12 Timers
    13. 7.13 Inter-Integrated Circuit Interface (I2C)
      1. Table 7-33 Timing Requirements for I2C Input Timings
      2. Table 7-34 Timing Requirements for I2C HS-Mode (I2C3/4/5 Only)
      3. Table 7-35 Switching Characteristics Over Recommended Operating Conditions for I2C Output Timings
    14. 7.14 HDQ / 1-Wire Interface (HDQ1W)
      1. 7.14.1 HDQ / 1-Wire - HDQ Mode
      2. 7.14.2 HDQ/1-Wire-1-Wire Mode
    15. 7.15 Universal Asynchronous Receiver Transmitter (UART)
      1. Table 7-40 Timing Requirements for UART
      2. Table 7-41 Switching Characteristics Over Recommended Operating Conditions for UART
    16. 7.16 Multichannel Serial Peripheral Interface (McSPI)
    17. 7.17 Quad Serial Peripheral Interface (QSPI)
    18. 7.18 Multichannel Audio Serial Port (McASP)
      1. Table 7-48 Timing Requirements for McASP1
      2. Table 7-49 Timing Requirements for McASP2
      3. Table 7-50 Timing Requirements for McASP3/4/5/6/7/8
    19. 7.19 Universal Serial Bus (USB)
      1. 7.19.1 USB1 DRD PHY
      2. 7.19.2 USB2 PHY
    20. 7.20 Serial Advanced Technology Attachment (SATA)
    21. 7.21 Peripheral Component Interconnect Express (PCIe)
    22. 7.22 Controller Area Network Interface (DCAN)
      1. Table 7-65 Timing Requirements for DCANx Receive
      2. Table 7-66 Switching Characteristics Over Recommended Operating Conditions for DCANx Transmit
    23. 7.23 Ethernet Interface (GMAC_SW)
      1. 7.23.1 GMAC MII Timings
        1. Table 7-67 Timing Requirements for miin_rxclk - MII Operation
        2. Table 7-68 Timing Requirements for miin_txclk - MII Operation
        3. Table 7-69 Timing Requirements for GMAC MIIn Receive 10/100 Mbit/s
        4. Table 7-70 Switching Characteristics Over Recommended Operating Conditions for GMAC MIIn Transmit 10/100 Mbits/s
      2. 7.23.2 GMAC MDIO Interface Timings
      3. 7.23.3 GMAC RMII Timings
        1. Table 7-75 Timing Requirements for GMAC REF_CLK - RMII Operation
        2. Table 7-76 Timing Requirements for GMAC RMIIn Receive
        3. Table 7-77 Switching Characteristics Over Recommended Operating Conditions for GMAC REF_CLK - RMII Operation
        4. Table 7-78 Switching Characteristics Over Recommended Operating Conditions for GMAC RMIIn Transmit 10/100 Mbits/s
      4. 7.23.4 GMAC RGMII Timings
        1. Table 7-82 Timing Requirements for rgmiin_rxc - RGMIIn Operation
        2. Table 7-83 Timing Requirements for GMAC RGMIIn Input Receive for 10/100/1000 Mbps
        3. Table 7-84 Switching Characteristics Over Recommended Operating Conditions for rgmiin_txctl - RGMIIn Operation for 10/100/1000 Mbit/s
        4. Table 7-85 Switching Characteristics for GMAC RGMIIn Output Transmit for 10/100/1000 Mbps
    24. 7.24 eMMC/SD/SDIO
      1. 7.24.1 MMC1-SD Card Interface
        1. 7.24.1.1 Default speed, 4-bit data, SDR, half-cycle
        2. 7.24.1.2 High speed, 4-bit data, SDR, half-cycle
        3. 7.24.1.3 SDR12, 4-bit data, half-cycle
        4. 7.24.1.4 SDR25, 4-bit data, half-cycle
        5. 7.24.1.5 UHS-I SDR50, 4-bit data, half-cycle
        6. 7.24.1.6 UHS-I SDR104, 4-bit data, half-cycle
        7. 7.24.1.7 UHS-I DDR50, 4-bit data
      2. 7.24.2 MMC2 - eMMC
        1. 7.24.2.1 Standard JC64 SDR, 8-bit data, half cycle
        2. 7.24.2.2 High-speed JC64 SDR, 8-bit data, half cycle
        3. 7.24.2.3 High-speed HS200 JEDS84, 8-bit data, half cycle
        4. 7.24.2.4 High-speed JC64 DDR, 8-bit data
          1. Table 7-110 Switching Characteristics for MMC2 - JC64 High Speed DDR Mode
      3. 7.24.3 MMC3 and MMC4-SDIO/SD
        1. 7.24.3.1 MMC3 and MMC4, SD Default Speed
        2. 7.24.3.2 MMC3 and MMC4, SD High Speed
        3. 7.24.3.3 MMC3 and MMC4, SD and SDIO SDR12 Mode
        4. 7.24.3.4 MMC3 and MMC4, SD SDR25 Mode
        5. 7.24.3.5 MMC3 SDIO High-Speed UHS-I SDR50 Mode, Half Cycle
    25. 7.25 General-Purpose Interface (GPIO)
    26. 7.26 PRU-ICSS Interfaces
      1. 7.26.1 Programmable Real-Time Unit (PRU-ICSS PRU)
        1. 7.26.1.1 PRU-ICSS PRU Direct Input/Output Mode Electrical Data and Timing
          1. Table 7-132 PRU-ICSS PRU Timing Requirements - Direct Input Mode
          2. Table 7-133 PRU-ICSS PRU Switching Requirements - Direct Output Mode
        2. 7.26.1.2 PRU-ICSS PRU Parallel Capture Mode Electrical Data and Timing
          1. Table 7-134 PRU-ICSS PRU Timing Requirements - Parallel Capture Mode
        3. 7.26.1.3 PRU-ICSS PRU Shift Mode Electrical Data and Timing
          1. Table 7-135 PRU-ICSS PRU Timing Requirements - Shift In Mode
          2. Table 7-136 PRU-ICSS PRU Switching Requirements - Shift Out Mode
        4. 7.26.1.4 PRU-ICSS PRU Sigma Delta and EnDAT Modes
          1. Table 7-137 PRU-ICSS PRU Timing Requirements - Sigma Delta Mode
          2. Table 7-138 PRU-ICSS PRU Timing Requirements - EnDAT Mode
          3. Table 7-139 PRU-ICSS PRU Switching Requirements - EnDAT Mode
      2. 7.26.2 PRU-ICSS EtherCAT (PRU-ICSS ECAT)
        1. 7.26.2.1 PRU-ICSS ECAT Electrical Data and Timing
          1. Table 7-140 PRU-ICSS ECAT Timing Requirements - Input Validated With LATCH_IN
          2. Table 7-141 PRU-ICSS ECAT Timing Requirements - Input Validated With SYNCx
          3. Table 7-142 PRU-ICSS ECAT Timing Requirements - Input Validated With Start of Frame (SOF)
          4. Table 7-143 PRU-ICSS ECAT Timing Requirements - LATCHx_IN
          5. Table 7-144 PRU-ICSS ECAT Switching Requirements - Digital IOs
      3. 7.26.3 PRU-ICSS MII_RT and Switch
        1. 7.26.3.1 PRU-ICSS MDIO Electrical Data and Timing
          1. Table 7-145 PRU-ICSS MDIO Timing Requirements - MDIO_DATA
          2. Table 7-146 PRU-ICSS MDIO Switching Characteristics - MDIO_CLK
          3. Table 7-147 PRU-ICSS MDIO Switching Characteristics - MDIO_DATA
        2. 7.26.3.2 PRU-ICSS MII_RT Electrical Data and Timing
          1. Table 7-148 PRU-ICSS MII_RT Timing Requirements - MII[x]_RXCLK
          2. Table 7-149 PRU-ICSS MII_RT Timing Requirements - MII[x]_TXCLK
          3. Table 7-150 PRU-ICSS MII_RT Timing Requirements - MII_RXD[3:0], MII_RXDV, and MII_RXER
          4. Table 7-151 PRU-ICSS MII_RT Switching Characteristics - MII_TXD[3:0] and MII_TXEN
      4. 7.26.4 PRU-ICSS Universal Asynchronous Receiver Transmitter (PRU-ICSS UART)
        1. Table 7-152 Timing Requirements for PRU-ICSS UART Receive
        2. Table 7-153 Switching Characteristics Over Recommended Operating Conditions for PRU-ICSS UART Transmit
      5. 7.26.5 PRU-ICSS Manual Functional Mapping
    27. 7.27 System and Miscellaneous interfaces
    28. 7.28 Test Interfaces
      1. 7.28.1 IEEE 1149.1 Standard-Test-Access Port (JTAG)
        1. 7.28.1.1 JTAG Electrical Data/Timing
          1. Table 7-173 Timing Requirements for IEEE 1149.1 JTAG
          2. Table 7-174 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG
          3. Table 7-175 Timing Requirements for IEEE 1149.1 JTAG With RTCK
          4. Table 7-176 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG With RTCK
      2. 7.28.2 Trace Port Interface Unit (TPIU)
        1. 7.28.2.1 TPIU PLL DDR Mode
  8. Applications, Implementation, and Layout
    1. 8.1 Power Supply Mapping
    2. 8.2 DDR3 Board Design and Layout Guidelines
      1. 8.2.1 DDR3 General Board Layout Guidelines
      2. 8.2.2 DDR3 Board Design and Layout Guidelines
        1. 8.2.2.1  Board Designs
        2. 8.2.2.2  DDR3 EMIF
        3. 8.2.2.3  DDR3 Device Combinations
        4. 8.2.2.4  DDR3 Interface Schematic
          1. 8.2.2.4.1 32-Bit DDR3 Interface
          2. 8.2.2.4.2 16-Bit DDR3 Interface
        5. 8.2.2.5  Compatible JEDEC DDR3 Devices
        6. 8.2.2.6  PCB Stackup
        7. 8.2.2.7  Placement
        8. 8.2.2.8  DDR3 Keepout Region
        9. 8.2.2.9  Bulk Bypass Capacitors
        10. 8.2.2.10 High-Speed Bypass Capacitors
          1. 8.2.2.10.1 Return Current Bypass Capacitors
        11. 8.2.2.11 Net Classes
        12. 8.2.2.12 DDR3 Signal Termination
        13. 8.2.2.13 VREF_DDR Routing
        14. 8.2.2.14 VTT
        15. 8.2.2.15 CK and ADDR_CTRL Topologies and Routing Definition
          1. 8.2.2.15.1 Four DDR3 Devices
            1. 8.2.2.15.1.1 CK and ADDR_CTRL Topologies, Four DDR3 Devices
            2. 8.2.2.15.1.2 CK and ADDR_CTRL Routing, Four DDR3 Devices
          2. 8.2.2.15.2 Two DDR3 Devices
            1. 8.2.2.15.2.1 CK and ADDR_CTRL Topologies, Two DDR3 Devices
            2. 8.2.2.15.2.2 CK and ADDR_CTRL Routing, Two DDR3 Devices
          3. 8.2.2.15.3 One DDR3 Device
            1. 8.2.2.15.3.1 CK and ADDR_CTRL Topologies, One DDR3 Device
            2. 8.2.2.15.3.2 CK and ADDR/CTRL Routing, One DDR3 Device
        16. 8.2.2.16 Data Topologies and Routing Definition
          1. 8.2.2.16.1 DQS and DQ/DM Topologies, Any Number of Allowed DDR3 Devices
          2. 8.2.2.16.2 DQS and DQ/DM Routing, Any Number of Allowed DDR3 Devices
        17. 8.2.2.17 Routing Specification
          1. 8.2.2.17.1 CK and ADDR_CTRL Routing Specification
          2. 8.2.2.17.2 DQS and DQ Routing Specification
    3. 8.3 High Speed Differential Signal Routing Guidance
    4. 8.4 Power Distribution Network Implementation Guidance
    5. 8.5 Thermal Solution Guidance
    6. 8.6 Single-Ended Interfaces
      1. 8.6.1 General Routing Guidelines
      2. 8.6.2 QSPI Board Design and Layout Guidelines
    7. 8.7 LJCB_REFN/P Connections
    8. 8.8 Clock Routing Guidelines
      1. 8.8.1 32-kHz Oscillator Routing
      2. 8.8.2 Oscillator Ground Connection
  9. Device and Documentation Support
    1. 9.1 Device Nomenclature
      1. 9.1.1 Standard Package Symbolization
      2. 9.1.2 Device Naming Convention
    2. 9.2 Tools and Software
    3. 9.3 Documentation Support
    4. 9.4 Receiving Notification of Documentation Updates
    5. 9.5 Related Links
    6. 9.6 Community Resources
    7. 9.7 Trademarks
    8. 9.8 静电放电警告
    9. 9.9 术语表
  10. 10Mechanical Packaging and Orderable Information
    1. 10.1 Mechanical Data

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Video Input Ports (VIP)

The Device includes 1 Video Input Ports (VIP)

Table 7-3, Figure 7-4 and Figure 7-5 present timings and switching characteristics of the VIPs.

CAUTION

The I/O timings provided in this section are valid only for VIN1 and VIN2 if signals within a single IOSET are used. The IOSETs are defined in Table 7-4 and Table 7-5.

Table 7-3 Timing Requirements for VIP (3)(4)(5)

NO. PARAMETER DESCRIPTION MIN MAX UNIT
V1 tc(CLK) Cycle time, vinx_clki (3)(5) 6.06 (2) ns
V2 tw(CLKH) Pulse duration, vinx_clki high (3)(5) 0.45*P (2) ns
V3 tw(CLKL) Pulse duration, vinx_clki low (3)(5) 0.45*P (2) ns
V4 tsu(CTL/DATA-CLK) Input setup time, Control (vinx_dei, vinx_vsynci, vinx_fldi, vinx_hsynci) and Data (vinx_dn) valid to vinx_clki transition (3)(4)(5) 3.11 (2) ns
V6 th(CLK-CTL/DATA) Input hold time, Control (vinx_dei, vinx_vsynci, vinx_fldi, vinx_hsynci) and Data (vinx_dn) valid from vinx_clki transition (3)(4)(5) -0.05 (2) ns
  1. For maximum frequency of 165 MHz.
  2. P = vinx_clki period.
  3. x in vinx = 1a, 1b, 2a, 2b.
  4. n in dn = 0 to 7 when x = 1b, 2b.
    n = 0 to 23 when x = 1a, 2a.
  5. i in clki, dei, vsynci, hsynci and fldi = 0 or 1.
AM5718 AM5716 SPRS906_TIMING_VIP_01.gifFigure 7-4 Video Input Ports clock signal
AM5718 AM5716 SPRS906_TIMING_VIP_02.gifFigure 7-5 Video Input Ports timings

In Table 7-4 and Table 7-5 are presented the specific groupings of signals (IOSET) for use with vin1 and vin2.

Table 7-4 VIN1 IOSETs

SIGNALS IOSET2 IOSET3 IOSET4 (1) IOSET5(1) IOSET6(1) IOSET7(1) IOSET8 IOSET9 IOSET10
BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX
vin1a
vin1a_clk0 P1 2 B11 4 B11 3 P4 4 P4 4 B26 8 AC5 9 E17 7 E17 7
vin1a_hsync0 N7 2 C11 4 C11 3 R3 4 P7 4 E21 8 AB8 9 F12 7 F12 7
vin1a_vsync0 R4 2 E11 4 E11 3 T2 4 N1 4 F20 8 AB5 9 G12 7 G12 7
vin1a_fld0 P9 2 D11 4 D11 3 P9 4 J7 4 F21 8 C17 9 C14 7 C14 7
vin1a_de0 N9 2 B10 4 B10 3 P7 5 H6 4 C23 8 AB4 9 D14 7 D14 7
vin1a_d0 M6 2 B7 4 B7 3 R6 4 R6 4 B14 8 AD6 9 D18 7 C17 7
vin1a_d1 M2 2 B8 4 B8 3 T9 4 T9 4 J14 8 AC8 9 B19 7 B19 7
vin1a_d2 L5 2 A7 4 A7 3 T6 4 T6 4 G13 8 AC3 9 F15 7 F15 7
vin1a_d3 M1 2 A8 4 A8 3 T7 4 T7 4 J11 8 AC9 9 B18 7 B18 7
vin1a_d4 L6 2 C9 4 C9 3 P6 4 P6 4 E12 8 AC6 9 A16 7 A16 7
vin1a_d5 L4 2 A9 4 A9 3 R9 4 R9 4 F13 8 AC7 9 C15 7 C15 7
vin1a_d6 L3 2 B9 4 B9 3 R5 4 R5 4 C12 8 AC4 9 A18 7 A18 7
vin1a_d7 L2 2 A10 4 A10 3 P5 4 P5 4 D12 8 AD4 9 A19 7 A19 7
vin1a_d8 L1 2 E8 4 E8 3 U2 4 U2 4 E15 8 AA4 9 F14 7 F14 7
vin1a_d9 K2 2 D9 4 D9 3 U1 4 U1 4 A20 8 AB3 9 G14 7 G14 7
vin1a_d10 J1 2 D7 4 D7 3 P3 4 P3 4 B15 8 AB9 9 A13 7 A13 7
vin1a_d11 J2 2 D8 4 D8 3 R2 4 R2 4 A15 8 AA3 9 E14 7 E14 7
vin1a_d12 H1 2 A5 4 A5 3 K7 4 K7 4 D15 8 D17 9 A12 7 A12 7
vin1a_d13 J3 2 C6 4 C6 3 M7 4 M7 4 B16 8 G16 9 B13 7 B13 7
vin1a_d14 H2 2 C8 4 C8 3 J5 4 J5 4 B17 8 A21 9 A11 7 A11 7
vin1a_d15 H3 2 C7 4 C7 3 K6 4 K6 4 A17 8 C18 9 B12 7 B12 7
vin1a_d16 R6 2 F11 4 F11 3 C18 8
vin1a_d17 T9 2 G10 4 G10 3 A21 8
vin1a_d18 T6 2 F10 4 F10 3 G16 8
vin1a_d19 T7 2 G11 4 G11 3 D17 8
vin1a_d20 P6 2 E9 4 E9 3 AA3 8
vin1a_d21 R9 2 F9 4 F9 3 AB9 8
vin1a_d22 R5 2 F8 4 F8 3 AB3 8
vin1a_d23 P5 2 E7 4 E7 3 AA4 8
vin1b
vin1b_clk1 P7 6 M4 4 V1 5 N9 6
vin1b_hsync1 H5 6 H5 6 U7 5 N7 6
vin1b_vsync1 H6 6 H6 6 V6 5 R4 6
vin1b_fld1 M4 6 W2 5 P4 6
vin1b_de1 N6 6 N6 6 V7 5 P9 6
vin1b_d0 K7 6 K7 6 U4 5 R6 6
vin1b_d1 M7 6 M7 6 V2 5 T9 6
vin1b_d2 J5 6 J5 6 Y1 5 T6 6
vin1b_d3 K6 6 K6 6 W9 5 T7 6
vin1b_d4 J7 6 J7 6 V9 5 P6 6
vin1b_d5 J4 6 J4 6 U5 5 R9 6
vin1b_d6 J6 6 J6 6 V5 5 R5 6
vin1b_d7 H4 6 H4 6 V4 5 P5 6
  1. The IOSET under this column is only applicable for pins with alternate functionality which allows either VIN1 or VIN2 signals to be mapped to the pins. These alternate functions are controlled via CTRL_CORE_VIP_MUX_SELECT register. For more information on how to use these options, please refer to Device TRM, chapter Control Module, section Pad Configuration Registers.

Table 7-5 VIN2 IOSETs

SIGNALS IOSET1 IOSET2 IOSET4 IOSET5 IOSET6 IOSET7(1) IOSET8(1) IOSET9(1) IOSET10(1)
BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX BALL MUX
vin2a
vin2a_clk0 E1 0 E1 0 V1 4 B11 3 P4 4 P4 4 B26 8
vin2a_hsync0 G1 0 G1 0 U7 4 C11 3 R3 4 P7 4 E21 8
vin2a_vsync0 G6 0 G6 0 V6 4 E11 3 T2 4 N1 4 F20 8
vin2a_fld0 H7 0 G2 1 W2 4 D11 3 P9 4 J7 4 F21 8
vin2a_de0 G2 0 V7 4 B10 3 P7 5 H6 4 C23 8
vin2a_d0 F2 0 F2 0 U4 4 B7 3 R6 4 R6 4 B14 8
vin2a_d1 F3 0 F3 0 V2 4 B8 3 T9 4 T9 4 J14 8
vin2a_d2 D1 0 D1 0 Y1 4 A7 3 T6 4 T6 4 G13 8
vin2a_d3 E2 0 E2 0 W9 4 A8 3 T7 4 T7 4 J11 8
vin2a_d4 D2 0 D2 0 V9 4 C9 3 P6 4 P6 4 E12 8
vin2a_d5 F4 0 F4 0 U5 4 A9 3 R9 4 R9 4 F13 8
vin2a_d6 C1 0 C1 0 V5 4 B9 3 R5 4 R5 4 C12 8
vin2a_d7 E4 0 E4 0 V4 4 A10 3 P5 4 P5 4 D12 8
vin2a_d8 F5 0 F5 0 V3 4 E8 3 U2 4 U2 4 E15 8
vin2a_d9 E6 0 E6 0 Y2 4 D9 3 U1 4 U1 4 A20 8
vin2a_d10 D3 0 D3 0 U6 4 D7 3 P3 4 P3 4 B15 8
vin2a_d11 F6 0 F6 0 U3 4 D8 3 R2 4 R2 4 A15 8
vin2a_d12 D5 0 D5 0 A5 3 K7 4 K7 4 D15 8
vin2a_d13 C2 0 C2 0 C6 3 M7 4 M7 4 B16 8
vin2a_d14 C3 0 C3 0 C8 3 J5 4 J5 4 B17 8
vin2a_d15 C4 0 C4 0 C7 3 K6 4 K6 4 A17 8
vin2a_d16 B2 0 B2 0 F11 3 C18 8
vin2a_d17 D6 0 D6 0 G10 3 A21 8
vin2a_d18 C5 0 C5 0 F10 3 G16 8
vin2a_d19 A3 0 A3 0 G11 3 D17 8
vin2a_d20 B3 0 B3 0 E9 3 AA3 8
vin2a_d21 B4 0 B4 0 F9 3 AB9 8
vin2a_d22 B5 0 B5 0 F8 3 AB3 8
vin2a_d23 A4 0 A4 0 E7 3 AA4 8
vin2b
vin2b_clk1 P7 6 M4 4 H7 2 H7 2 AB5 4
vin2b_hsync1 H5 6 H5 6 G1 3 G1 3 AC5 4
vin2b_vsync1 H6 6 H6 6 G6 3 G6 3 AB4 4
vin2b_fld1 M4 6 G2 2
vin2b_de1 N6 6 N6 6 G2 3 AB8 4
vin2b_d0 K7 6 K7 6 A4 2 A4 2 AD6 4
vin2b_d1 M7 6 M7 6 B5 2 B5 2 AC8 4
vin2b_d2 J5 6 J5 6 B4 2 B4 2 AC3 4
vin2b_d3 K6 6 K6 6 B3 2 B3 2 AC9 4
vin2b_d4 J7 6 J7 6 A3 2 A3 2 AC6 4
vin2b_d5 J4 6 J4 6 C5 2 C5 2 AC7 4
vin2b_d6 J6 6 J6 6 D6 2 D6 2 AC4 4
vin2b_d7 H4 6 H4 6 B2 2 B2 2 AD4 4
  1. The IOSET under this column is only applicable for pins with alternate functionality which allows either VIN1 or VIN2 signals to be mapped to the pins. These alternate functions are controlled via CTRL_CORE_VIP_MUX_SELECT register. For more information on how to use these options, please refer to Device TRM, chapter Control Module, section Pad Configuration Registers.

NOTE

To configure the desired Manual IO Timing Mode the user must follow the steps described in section "Manual IO Timing Modes" of the Device TRM.

The associated registers to configure are listed in the CFG REGISTER column. For more information please see the Control Module chapter in the Device TRM.

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Manual Functions Mapping for VIP1 1A IOSET7 and 2A IOSET10 for a definition of the Manual modes.

Table 7-6 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-6 Manual Functions Mapping for VIP1 1A IOSET7 and 2A IOSET10

BALL BALL NAME VIP_MANUAL1 VIP_MANUAL2 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 8 8(1)
E21 gpio6_14 1400 240 1767 0 CFG_GPIO6_14_IN vin2a_hsync0 vin1a_hsync0
F20 gpio6_15 1170 240 1522 0 CFG_GPIO6_15_IN vin2a_vsync0 vin1a_vsync0
F21 gpio6_16 1470 0 1600 0 CFG_GPIO6_16_IN vin2a_fld0 vin1a_fld0
B14 mcasp1_aclkr 2145 200 2509 0 CFG_MCASP1_ACLKR_IN vin2a_d0 vin1a_d0
G13 mcasp1_axr2 2740 900 2680 1180 CFG_MCASP1_AXR2_IN vin2a_d2 vin1a_d2
J11 mcasp1_axr3 2933 200 2700 600 CFG_MCASP1_AXR3_IN vin2a_d3 vin1a_d3
E12 mcasp1_axr4 2901 240 2660 700 CFG_MCASP1_AXR4_IN vin2a_d4 vin1a_d4
F13 mcasp1_axr5 2600 840 2640 920 CFG_MCASP1_AXR5_IN vin2a_d5 vin1a_d5
C12 mcasp1_axr6 2718 240 3081 0 CFG_MCASP1_AXR6_IN vin2a_d6 vin1a_d6
D12 mcasp1_axr7 2983 240 2540 800 CFG_MCASP1_AXR7_IN vin2a_d7 vin1a_d7
J14 mcasp1_fsr 2203 240 2566 0 CFG_MCASP1_FSR_IN vin2a_d1 vin1a_d1
E15 mcasp2_aclkr 2143 240 2492 0 CFG_MCASP2_ACLKR_IN vin2a_d8 vin1a_d8
B15 mcasp2_axr0 2543 240 2905 0 CFG_MCASP2_AXR0_IN vin2a_d10 vin1a_d10
A15 mcasp2_axr1 2664 240 2730 400 CFG_MCASP2_AXR1_IN vin2a_d11 vin1a_d11
D15 mcasp2_axr4 2792 240 2750 400 CFG_MCASP2_AXR4_IN vin2a_d12 vin1a_d12
B16 mcasp2_axr5 2621 300 2983 0 CFG_MCASP2_AXR5_IN vin2a_d13 vin1a_d13
B17 mcasp2_axr6 1903 100 2086 0 CFG_MCASP2_AXR6_IN vin2a_d14 vin1a_d14
A17 mcasp2_axr7 2928 200 2670 700 CFG_MCASP2_AXR7_IN vin2a_d15 vin1a_d15
A20 mcasp2_fsr 2291 200 2654 0 CFG_MCASP2_FSR_IN vin2a_d9 vin1a_d9
C18 mcasp4_aclkx 1433 0 1540 0 CFG_MCASP4_ACLKX_IN vin2a_d16 vin1a_d16
G16 mcasp4_axr0 2500 0 2560 0 CFG_MCASP4_AXR0_IN vin2a_d18 vin1a_d18
D17 mcasp4_axr1 2379 100 2599 0 CFG_MCASP4_AXR1_IN vin2a_d19 vin1a_d19
A21 mcasp4_fsx 1500 1400 1900 1040 CFG_MCASP4_FSX_IN vin2a_d17 vin1a_d17
AA3 mcasp5_aclkx 3740 1850 3900 1700 CFG_MCASP5_ACLKX_IN vin2a_d20 vin1a_d20
AB3 mcasp5_axr0 3800 2760 3800 2800 CFG_MCASP5_AXR0_IN vin2a_d22 vin1a_d22
AA4 mcasp5_axr1 4099 2500 3900 2870 CFG_MCASP5_AXR1_IN vin2a_d23 vin1a_d23
AB9 mcasp5_fsx 3740 2100 3860 2060 CFG_MCASP5_FSX_IN vin2a_d21 vin1a_d21
B26 xref_clk2 0 0 0 0 CFG_XREF_CLK2_IN vin2a_clk0 vin1a_clk0
C23 xref_clk3 1440 0 1623 0 CFG_XREF_CLK3_IN vin2a_de0 vin1a_de0
  1. Some signals listed are manual functions that present alternate multiplexing options. These manual functions are controlled via CTRL_CORE_ALT_SELECT_MUX or CTRL_CORE_VIP_MUX_SELECT registers. For more information on how to use these options, please refer to Device TRM, Chapter Control Module, Section Pad Configuration Registers.

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-7Manual Functions Mapping for VIN2A (IOSET4/5/6) for a definition of the Manual modes.

Table 7-7 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-7 Manual Functions Mapping for VIN2A (IOSET4/5/6)

BALL BALL NAME VIP_MANUAL3 VIP_MANUAL5 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 0 1 2 3 4
U3 RMII_MHZ_50_CLK 2616 1379 2798 1294 CFG_RMII_MHZ_50_CLK_IN - - - - vin2a_d11
U4 mdio_d 2558 1105 2790 954 CFG_MDIO_D_IN - - - - vin2a_d0
V1 mdio_mclk 998 463 1029 431 CFG_MDIO_MCLK_IN - - - - vin2a_clk0
U5 rgmii0_rxc 2658 862 2896 651 CFG_RGMII0_RXC_IN - - - - vin2a_d5
V5 rgmii0_rxctl 2658 1628 2844 1518 CFG_RGMII0_RXCTL_IN - - - - vin2a_d6
W2 rgmii0_rxd0 2638 1123 2856 888 CFG_RGMII0_RXD0_IN - - - - vin2a_fld0
Y2 rgmii0_rxd1 2641 1737 2804 1702 CFG_RGMII0_RXD1_IN - - - - vin2a_d9
V3 rgmii0_rxd2 2641 1676 2801 1652 CFG_RGMII0_RXD2_IN - - - - vin2a_d8
V4 rgmii0_rxd3 2644 1828 2807 1790 CFG_RGMII0_RXD3_IN - - - - vin2a_d7
W9 rgmii0_txc 2638 1454 2835 1396 CFG_RGMII0_TXC_IN - - - - vin2a_d3
V9 rgmii0_txctl 2672 1663 2831 1640 CFG_RGMII0_TXCTL_IN - - - - vin2a_d4
U6 rgmii0_txd0 2604 1442 2764 1417 CFG_RGMII0_TXD0_IN - - - - vin2a_d10
V6 rgmii0_txd1 2683 1598 2843 1600 CFG_RGMII0_TXD1_IN - - - - vin2a_vsync0
U7 rgmii0_txd2 2563 1483 2816 1344 CFG_RGMII0_TXD2_IN - - - - vin2a_hsync0
V7 rgmii0_txd3 2717 1461 2913 1310 CFG_RGMII0_TXD3_IN - - - - vin2a_de0
V2 uart3_rxd 2445 1145 2743 923 CFG_UART3_RXD_IN - - - - vin2a_d1
Y1 uart3_txd 2650 1197 2842 1080 CFG_UART3_TXD_IN - - - - vin2a_d2
E1 vin2a_clk0 0 0 0 0 CFG_VIN2A_CLK0_IN vin2a_clk0 - - - -
F2 vin2a_d0 1812 102 1936 0 CFG_VIN2A_D0_IN vin2a_d0 - - - -
F3 vin2a_d1 1701 439 2229 10 CFG_VIN2A_D1_IN vin2a_d1 - - - -
D3 vin2a_d10 1720 215 2031 0 CFG_VIN2A_D10_IN vin2a_d10 - - - -
F6 vin2a_d11 1622 0 1702 0 CFG_VIN2A_D11_IN vin2a_d11 - - - -
D5 vin2a_d12 1350 412 1819 0 CFG_VIN2A_D12_IN vin2a_d12 - - - -
C2 vin2a_d13 1613 147 1476 260 CFG_VIN2A_D13_IN vin2a_d13 - - - -
C3 vin2a_d14 1149 516 1701 0 CFG_VIN2A_D14_IN vin2a_d14 - - - -
C4 vin2a_d15 1530 450 2021 0 CFG_VIN2A_D15_IN vin2a_d15 - - - -
B2 vin2a_d16 1512 449 2044 11 CFG_VIN2A_D16_IN vin2a_d16 - vin2b_d7 - -
D6 vin2a_d17 1293 488 1839 5 CFG_VIN2A_D17_IN vin2a_d17 - vin2b_d6 - -
C5 vin2a_d18 2140 371 2494 0 CFG_VIN2A_D18_IN vin2a_d18 - vin2b_d5 - -
A3 vin2a_d19 2041 275 1699 611 CFG_VIN2A_D19_IN vin2a_d19 - vin2b_d4 - -
D1 vin2a_d2 1675 35 1736 0 CFG_VIN2A_D2_IN vin2a_d2 - - - -
B3 vin2a_d20 1972 441 2412 88 CFG_VIN2A_D20_IN vin2a_d20 - vin2b_d3 - -
B4 vin2a_d21 1957 556 2391 161 CFG_VIN2A_D21_IN vin2a_d21 - vin2b_d2 - -
B5 vin2a_d22 2011 433 2446 102 CFG_VIN2A_D22_IN vin2a_d22 - vin2b_d1 - -
A4 vin2a_d23 1962 523 2395 145 CFG_VIN2A_D23_IN vin2a_d23 - vin2b_d0 - -
E2 vin2a_d3 1457 361 1943 0 CFG_VIN2A_D3_IN vin2a_d3 - - - -
D2 vin2a_d4 1535 0 1601 0 CFG_VIN2A_D4_IN vin2a_d4 - - - -
F4 vin2a_d5 1676 271 2052 0 CFG_VIN2A_D5_IN vin2a_d5 - - - -
C1 vin2a_d6 1513 0 1571 0 CFG_VIN2A_D6_IN vin2a_d6 - - - -
E4 vin2a_d7 1616 141 1855 0 CFG_VIN2A_D7_IN vin2a_d7 - - - -
F5 vin2a_d8 1286 437 1224 618 CFG_VIN2A_D8_IN vin2a_d8 - - - -
E6 vin2a_d9 1544 265 1373 509 CFG_VIN2A_D9_IN vin2a_d9 - - - -
G2 vin2a_de0 1732 208 1949 0 CFG_VIN2A_DE0_IN vin2a_de0 vin2a_fld0 vin2b_fld1 vin2b_de1 -
H7 vin2a_fld0 1461 562 1983 151 CFG_VIN2A_FLD0_IN vin2a_fld0 - vin2b_clk1 - -
G1 vin2a_hsync0 1877 0 1943 0 CFG_VIN2A_HSYNC0_IN vin2a_hsync0 - - vin2b_hsync1 -
G6 vin2a_vsync0 1566 0 1612 0 CFG_VIN2A_VSYNC0_IN vin2a_vsync0 - - vin2b_vsync1 -

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-8Manual Functions Mapping for VIN2B (IOSET7/8/9) for a definition of the Manual modes.

Table 7-8 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-8 Manual Functions Mapping for VIN2B (IOSET7/8/9)

BALL BALL NAME VIP_MANUAL4 VIP_MANUAL6 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 2 3 4
AC5 gpio6_10 2829 884 3009 892 CFG_GPIO6_10_IN - - vin2b_hsync1
AB4 gpio6_11 2648 1033 2890 1096 CFG_GPIO6_11_IN - - vin2b_vsync1
AD4 mmc3_clk 2794 1074 2997 1089 CFG_MMC3_CLK_IN - - vin2b_d7
AC4 mmc3_cmd 2789 1162 2959 1210 CFG_MMC3_CMD_IN - - vin2b_d6
AC7 mmc3_dat0 2689 1180 2897 1269 CFG_MMC3_DAT0_IN - - vin2b_d5
AC6 mmc3_dat1 2605 1219 2891 1219 CFG_MMC3_DAT1_IN - - vin2b_d4
AC9 mmc3_dat2 2616 703 2947 590 CFG_MMC3_DAT2_IN - - vin2b_d3
AC3 mmc3_dat3 2760 1235 2931 1342 CFG_MMC3_DAT3_IN - - vin2b_d2
AC8 mmc3_dat4 2757 880 2979 891 CFG_MMC3_DAT4_IN - - vin2b_d1
AD6 mmc3_dat5 2688 1177 2894 1262 CFG_MMC3_DAT5_IN - - vin2b_d0
AB8 mmc3_dat6 2638 1165 2894 1187 CFG_MMC3_DAT6_IN - - vin2b_de1
AB5 mmc3_dat7 995 182 1202 107 CFG_MMC3_DAT7_IN - - vin2b_clk1
B2 vin2a_d16 1423 0 1739 0 CFG_VIN2A_D16_IN vin2b_d7 - -
D6 vin2a_d17 1253 0 1568 0 CFG_VIN2A_D17_IN vin2b_d6 - -
C5 vin2a_d18 2080 0 2217 0 CFG_VIN2A_D18_IN vin2b_d5 - -
A3 vin2a_d19 1849 0 2029 0 CFG_VIN2A_D19_IN vin2b_d4 - -
B3 vin2a_d20 1881 50 2202 0 CFG_VIN2A_D20_IN vin2b_d3 - -
B4 vin2a_d21 1917 167 2313 0 CFG_VIN2A_D21_IN vin2b_d2 - -
B5 vin2a_d22 1955 79 2334 0 CFG_VIN2A_D22_IN vin2b_d1 - -
A4 vin2a_d23 1899 145 2288 0 CFG_VIN2A_D23_IN vin2b_d0 - -
G2 vin2a_de0 1568 261 2048 0 CFG_VIN2A_DE0_IN vin2b_fld1 vin2b_de1 -
H7 vin2a_fld0 0 0 0 0 CFG_VIN2A_FLD0_IN vin2b_clk1 - -
G1 vin2a_hsync0 1793 0 2011 0 CFG_VIN2A_HSYNC0_IN - vin2b_hsync1 -
G6 vin2a_vsync0 1382 0 1632 0 CFG_VIN2A_VSYNC0_IN - vin2b_vsync1 -

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-9Manual Functions Mapping for VIN1A (IOSET2/3/4) and VIN1B (IOSET4/7) and VIN2B (IOSET1) for a definition of the Manual modes.

Table 7-9 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-9 Manual Functions Mapping for VIN1A (IOSET2/3/4) and VIN1B (IOSET4/7) and VIN2B (IOSET1)

BALL BALL NAME VIP_MANUAL7 VIP_MANUAL12 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 2 3(1) 3(1) 4(1) 4(1) 5 6(1) 6(1)
R6 gpmc_a0 3080 1792 3376 1632 CFG_GPMC_A0_IN vin1a_d16 - - vin2a_d0 - - vin1b_d0 -
T9 gpmc_a1 2958 1890 3249 1749 CFG_GPMC_A1_IN vin1a_d17 - - vin2a_d1 - - vin1b_d1 -
N9 gpmc_a10 3073 1653 3388 1433 CFG_GPMC_A10_IN vin1a_de0 - - - - - vin1b_clk1 -
P9 gpmc_a11 3014 1784 3290 1693 CFG_GPMC_A11_IN vin1a_fld0 - - vin2a_fld0 vin1a_fld0 - vin1b_de1 -
K7 gpmc_a19 1385 0 1246 0 CFG_GPMC_A19_IN - - - vin2a_d12 - - vin2b_d0 vin1b_d0
T6 gpmc_a2 3041 1960 3322 1850 CFG_GPMC_A2_IN vin1a_d18 - - vin2a_d2 - - vin1b_d2 -
M7 gpmc_a20 859 0 720 0 CFG_GPMC_A20_IN - - - vin2a_d13 - - vin2b_d1 vin1b_d1
J5 gpmc_a21 1465 0 1334 0 CFG_GPMC_A21_IN - - - vin2a_d14 - - vin2b_d2 vin1b_d2
K6 gpmc_a22 1210 0 1064 0 CFG_GPMC_A22_IN - - - vin2a_d15 - - vin2b_d3 vin1b_d3
J7 gpmc_a23 1111 0 954 0 CFG_GPMC_A23_IN - - - vin2a_fld0 - - vin2b_d4 vin1b_d4
J4 gpmc_a24 1137 0 1051 0 CFG_GPMC_A24_IN - - - - - - vin2b_d5 vin1b_d5
J6 gpmc_a25 1402 0 1283 0 CFG_GPMC_A25_IN - - - - - - vin2b_d6 vin1b_d6
H4 gpmc_a26 1298 0 1153 0 CFG_GPMC_A26_IN - - - - - - vin2b_d7 vin1b_d7
H5 gpmc_a27 934 0 870 0 CFG_GPMC_A27_IN - - - - - - vin2b_hsync1 vin1b_hsync1
T7 gpmc_a3 3019 2145 3296 2050 CFG_GPMC_A3_IN vin1a_d19 - - vin2a_d3 - - vin1b_d3 -
P6 gpmc_a4 3063 1981 3357 1829 CFG_GPMC_A4_IN vin1a_d20 - - vin2a_d4 - - vin1b_d4 -
R9 gpmc_a5 3021 1954 3304 1840 CFG_GPMC_A5_IN vin1a_d21 - - vin2a_d5 - - vin1b_d5 -
R5 gpmc_a6 3062 1716 3348 1592 CFG_GPMC_A6_IN vin1a_d22 - - vin2a_d6 - - vin1b_d6 -
P5 gpmc_a7 3260 1889 3583 1631 CFG_GPMC_A7_IN vin1a_d23 - - vin2a_d7 - - vin1b_d7 -
N7 gpmc_a8 3033 1702 3328 1547 CFG_GPMC_A8_IN vin1a_hsync0 - - - - - vin1b_hsync1 -
R4 gpmc_a9 2991 1905 3281 1766 CFG_GPMC_A9_IN vin1a_vsync0 - - - - - vin1b_vsync1 -
M6 gpmc_ad0 2907 1342 3181 1255 CFG_GPMC_AD0_IN vin1a_d0 - - - - - - -
M2 gpmc_ad1 2858 1321 3132 1234 CFG_GPMC_AD1_IN vin1a_d1 - - - - - - -
J1 gpmc_ad10 2920 1384 3223 1204 CFG_GPMC_AD10_IN vin1a_d10 - - - - - - -
J2 gpmc_ad11 2719 1310 3019 1198 CFG_GPMC_AD11_IN vin1a_d11 - - - - - - -
H1 gpmc_ad12 2845 1135 3160 917 CFG_GPMC_AD12_IN vin1a_d12 - - - - - - -
J3 gpmc_ad13 2765 1225 3045 1119 CFG_GPMC_AD13_IN vin1a_d13 - - - - - - -
H2 gpmc_ad14 2845 1150 3153 952 CFG_GPMC_AD14_IN vin1a_d14 - - - - - - -
H3 gpmc_ad15 2766 1453 3044 1355 CFG_GPMC_AD15_IN vin1a_d15 - - - - - - -
L5 gpmc_ad2 2951 1296 3226 1209 CFG_GPMC_AD2_IN vin1a_d2 - - - - - - -
M1 gpmc_ad3 2825 1154 3121 997 CFG_GPMC_AD3_IN vin1a_d3 - - - - - - -
L6 gpmc_ad4 2927 1245 3246 1014 CFG_GPMC_AD4_IN vin1a_d4 - - - - - - -
L4 gpmc_ad5 2923 1251 3217 1098 CFG_GPMC_AD5_IN vin1a_d5 - - - - - - -
L3 gpmc_ad6 2958 1342 3238 1239 CFG_GPMC_AD6_IN vin1a_d6 - - - - - - -
L2 gpmc_ad7 2900 1244 3174 1157 CFG_GPMC_AD7_IN vin1a_d7 - - - - - - -
L1 gpmc_ad8 2845 1585 3125 1482 CFG_GPMC_AD8_IN vin1a_d8 - - - - - - -
K2 gpmc_ad9 2779 1343 3086 1223 CFG_GPMC_AD9_IN vin1a_d9 - - - - - - -
N6 gpmc_ben0 1555 0 1425 0 CFG_GPMC_BEN0_IN - - - - - - vin2b_de1 vin1b_de1
M4 gpmc_ben1 1501 0 1397 0 CFG_GPMC_BEN1_IN - - - vin2b_clk1 - - vin2b_fld1 vin1b_fld1
P7 gpmc_clk 0 0 0 0 CFG_GPMC_CLK_IN - - - vin2a_hsync0 - vin2a_de0 vin2b_clk1 vin1b_clk1
H6 gpmc_cs1 1192 0 1102 0 CFG_GPMC_CS1_IN - - - vin2a_de0 - - vin2b_vsync1 vin1b_vsync1
P1 gpmc_cs3 1324 374 1466 353 CFG_GPMC_CS3_IN vin1a_clk0 - - - - - - -
D11 vout1_clk 1648 885 1762 928 CFG_VOUT1_CLK_IN - vin2a_fld0 vin1a_fld0 vin1a_fld0 - - - -
F11 vout1_d0 2197 565 2734 215 CFG_VOUT1_D0_IN - vin2a_d16 vin1a_d16 vin1a_d16 - - - -
G10 vout1_d1 2221 576 2750 230 CFG_VOUT1_D1_IN - vin2a_d17 vin1a_d17 vin1a_d17 - - - -
D7 vout1_d10 1800 863 1910 916 CFG_VOUT1_D10_IN - vin2a_d10 vin1a_d10 vin1a_d10 - - - -
D8 vout1_d11 1656 931 1780 945 CFG_VOUT1_D11_IN - vin2a_d11 vin1a_d11 vin1a_d11 - - - -
A5 vout1_d12 1719 1086 1866 1041 CFG_VOUT1_D12_IN - vin2a_d12 vin1a_d12 vin1a_d12 - - - -
C6 vout1_d13 1757 928 1851 1022 CFG_VOUT1_D13_IN - vin2a_d13 vin1a_d13 vin1a_d13 - - - -
C8 vout1_d14 2279 345 2788 0 CFG_VOUT1_D14_IN - vin2a_d14 vin1a_d14 vin1a_d14 - - - -
C7 vout1_d15 1810 874 2786 69 CFG_VOUT1_D15_IN - vin2a_d15 vin1a_d15 vin1a_d15 - - - -
B7 vout1_d16 1763 774 1880 807 CFG_VOUT1_D16_IN - vin2a_d0 vin1a_d0 vin1a_d0 - - - -
B8 vout1_d17 1695 788 1805 838 CFG_VOUT1_D17_IN - vin2a_d1 vin1a_d1 vin1a_d1 - - - -
A7 vout1_d18 1777 590 1871 684 CFG_VOUT1_D18_IN - vin2a_d2 vin1a_d2 vin1a_d2 - - - -
A8 vout1_d19 2047 22 2196 0 CFG_VOUT1_D19_IN - vin2a_d3 vin1a_d3 vin1a_d3 - - - -
F10 vout1_d2 1809 941 2759 178 CFG_VOUT1_D2_IN - vin2a_d18 vin1a_d18 vin1a_d18 - - - -
C9 vout1_d20 1676 944 1795 973 CFG_VOUT1_D20_IN - vin2a_d4 vin1a_d4 vin1a_d4 - - - -
A9 vout1_d21 1712 688 1848 670 CFG_VOUT1_D21_IN - vin2a_d5 vin1a_d5 vin1a_d5 - - - -
B9 vout1_d22 1698 557 2443 0 CFG_VOUT1_D22_IN - vin2a_d6 vin1a_d6 vin1a_d6 - - - -
A10 vout1_d23 1627 1035 1726 1116 CFG_VOUT1_D23_IN - vin2a_d7 vin1a_d7 vin1a_d7 - - - -
G11 vout1_d3 2427 429 2853 167 CFG_VOUT1_D3_IN - vin2a_d19 vin1a_d19 vin1a_d19 - - - -
E9 vout1_d4 2351 412 2845 85 CFG_VOUT1_D4_IN - vin2a_d20 vin1a_d20 vin1a_d20 - - - -
F9 vout1_d5 1634 983 1729 1076 CFG_VOUT1_D5_IN - vin2a_d21 vin1a_d21 vin1a_d21 - - - -
F8 vout1_d6 1776 880 2736 107 CFG_VOUT1_D6_IN - vin2a_d22 vin1a_d22 vin1a_d22 - - - -
E7 vout1_d7 2272 351 2757 53 CFG_VOUT1_D7_IN - vin2a_d23 vin1a_d23 vin1a_d23 - - - -
E8 vout1_d8 1724 898 1819 990 CFG_VOUT1_D8_IN - vin2a_d8 vin1a_d8 vin1a_d8 - - - -
D9 vout1_d9 2281 566 2804 195 CFG_VOUT1_D9_IN - vin2a_d9 vin1a_d9 vin1a_d9 - - - -
B10 vout1_de 1734 749 1828 842 CFG_VOUT1_DE_IN - vin2a_de0 vin1a_de0 vin1a_de0 - - - -
B11 vout1_fld 0 0 0 0 CFG_VOUT1_FLD_IN - vin2a_clk0 vin1a_clk0 vin1a_clk0 - - - -
C11 vout1_hsync 1634 606 2399 0 CFG_VOUT1_HSYNC_IN - vin2a_hsync0 vin1a_hsync0 vin1a_hsync0 - - - -
E11 vout1_vsync 1887 0 2068 0 CFG_VOUT1_VSYNC_IN - vin2a_vsync0 vin1a_vsync0 vin1a_vsync0 - - - -
  1. Some signals listed are manual functions that present alternate multiplexing options. These manual functions are controlled via CTRL_CORE_ALT_SELECT_MUX or CTRL_CORE_VIP_MUX_SELECT registers. For more information on how to use these options, please refer to Device TRM, Chapter Control Module, Section Pad Configuration Registers.

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-10Manual Functions Mapping for VIN1A (IOSET5/6) and VIN2A (IOSET7/8/9) for a definition of the Manual modes.

Table 7-10 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-10 Manual Functions Mapping for VIN1A (IOSET5/6) and VIN2A (IOSET7/8/9)

BALL BALL NAME VIP_MANUAL8 VIP_MANUAL13 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 3 4(1) 4(1) 5(1) 5(1)
R6 gpmc_a0 1891 427 2176 0 CFG_GPMC_A0_IN - vin2a_d0 vin1a_d0 - -
T9 gpmc_a1 1713 513 2109 0 CFG_GPMC_A1_IN - vin2a_d1 vin1a_d1 - -
P9 gpmc_a11 1797 317 2036 0 CFG_GPMC_A11_IN - vin2a_fld0 vin1a_fld0 - -
P4 gpmc_a12 0 0 0 0 CFG_GPMC_A12_IN - vin2a_clk0 vin1a_clk0 - -
R3 gpmc_a13 1876 391 2144 0 CFG_GPMC_A13_IN - vin2a_hsync0 vin1a_hsync0 - -
T2 gpmc_a14 1720 756 2384 38 CFG_GPMC_A14_IN - vin2a_vsync0 vin1a_vsync0 - -
U2 gpmc_a15 1502 368 1804 0 CFG_GPMC_A15_IN - vin2a_d8 vin1a_d8 - -
U1 gpmc_a16 1651 355 1902 0 CFG_GPMC_A16_IN - vin2a_d9 vin1a_d9 - -
P3 gpmc_a17 1642 338 1862 0 CFG_GPMC_A17_IN - vin2a_d10 vin1a_d10 - -
R2 gpmc_a18 1612 0 1406 0 CFG_GPMC_A18_IN - vin2a_d11 vin1a_d11 - -
K7 gpmc_a19 1463 152 1418 0 CFG_GPMC_A19_IN - vin2a_d12 vin1a_d12 - -
T6 gpmc_a2 1789 646 2310 0 CFG_GPMC_A2_IN - vin2a_d2 vin1a_d2 - -
M7 gpmc_a20 1124 0 933 0 CFG_GPMC_A20_IN - vin2a_d13 vin1a_d13 - -
J5 gpmc_a21 1491 206 1483 0 CFG_GPMC_A21_IN - vin2a_d14 vin1a_d14 - -
K6 gpmc_a22 1218 245 1254 0 CFG_GPMC_A22_IN - vin2a_d15 vin1a_d15 - -
J7 gpmc_a23 1216 0 1021 0 CFG_GPMC_A23_IN - vin2a_fld0 vin1a_fld0 - -
T7 gpmc_a3 1789 766 2451 8 CFG_GPMC_A3_IN - vin2a_d3 vin1a_d3 - -
P6 gpmc_a4 1842 646 2329 0 CFG_GPMC_A4_IN - vin2a_d4 vin1a_d4 - -
R9 gpmc_a5 1778 556 2215 0 CFG_GPMC_A5_IN - vin2a_d5 vin1a_d5 - -
R5 gpmc_a6 1783 443 2088 0 CFG_GPMC_A6_IN - vin2a_d6 vin1a_d6 - -
P5 gpmc_a7 2207 370 2393 0 CFG_GPMC_A7_IN - vin2a_d7 vin1a_d7 - -
N1 gpmc_advn_ale 1755 116 1745 0 CFG_GPMC_ADVN_ALE_IN - vin2a_vsync0 vin1a_vsync0 - -
P7 gpmc_clk 1896 351 2152 0 CFG_GPMC_CLK_IN - vin2a_hsync0 vin1a_hsync0 vin2a_de0 vin1a_de0
H6 gpmc_cs1 1337 74 1288 0 CFG_GPMC_CS1_IN - vin2a_de0 vin1a_de0 - -
D11 vout1_clk 1939 332 2486 0 CFG_VOUT1_CLK_IN vin2a_fld0 - - - -
F11 vout1_d0 2140 647 2617 386 CFG_VOUT1_D0_IN vin2a_d16 - - - -
G10 vout1_d1 2104 615 2620 314 CFG_VOUT1_D1_IN vin2a_d17 - - - -
D7 vout1_d10 2139 406 2675 85 CFG_VOUT1_D10_IN vin2a_d10 - - - -
D8 vout1_d11 1944 534 2569 125 CFG_VOUT1_D11_IN vin2a_d11 - - - -
A5 vout1_d12 1966 659 2646 154 CFG_VOUT1_D12_IN vin2a_d12 - - - -
C6 vout1_d13 2048 447 2624 87 CFG_VOUT1_D13_IN vin2a_d13 - - - -
C8 vout1_d14 2222 548 2700 286 CFG_VOUT1_D14_IN vin2a_d14 - - - -
C7 vout1_d15 2072 443 2664 67 CFG_VOUT1_D15_IN vin2a_d15 - - - -
B7 vout1_d16 2044 455 2634 82 CFG_VOUT1_D16_IN vin2a_d0 - - - -
B8 vout1_d17 1971 246 2433 0 CFG_VOUT1_D17_IN vin2a_d1 - - - -
A7 vout1_d18 2104 120 2440 0 CFG_VOUT1_D18_IN vin2a_d2 - - - -
A8 vout1_d19 1888 0 2105 0 CFG_VOUT1_D19_IN vin2a_d3 - - - -
F10 vout1_d2 2170 237 2624 0 CFG_VOUT1_D2_IN vin2a_d18 - - - -
C9 vout1_d20 1942 512 2579 91 CFG_VOUT1_D20_IN vin2a_d4 - - - -
A9 vout1_d21 1997 141 2324 0 CFG_VOUT1_D21_IN vin2a_d5 - - - -
B9 vout1_d22 1949 0 2165 0 CFG_VOUT1_D22_IN vin2a_d6 - - - -
A10 vout1_d23 1871 704 2522 269 CFG_VOUT1_D23_IN vin2a_d7 - - - -
G11 vout1_d3 2319 417 2740 191 CFG_VOUT1_D3_IN vin2a_d19 - - - -
E9 vout1_d4 2300 369 2739 137 CFG_VOUT1_D4_IN vin2a_d20 - - - -
F9 vout1_d5 1923 579 2527 191 CFG_VOUT1_D5_IN vin2a_d21 - - - -
F8 vout1_d6 2148 396 2622 138 CFG_VOUT1_D6_IN vin2a_d22 - - - -
E7 vout1_d7 2212 335 2653 110 CFG_VOUT1_D7_IN vin2a_d23 - - - -
E8 vout1_d8 1962 573 2573 178 CFG_VOUT1_D8_IN vin2a_d8 - - - -
D9 vout1_d9 2312 335 2725 138 CFG_VOUT1_D9_IN vin2a_d9 - - - -
B10 vout1_de 1973 414 2551 52 CFG_VOUT1_DE_IN vin2a_de0 - - - -
B11 vout1_fld 0 0 0 0 CFG_VOUT1_FLD_IN vin2a_clk0 - - - -
C11 vout1_hsync 1813 261 2277 0 CFG_VOUT1_HSYNC_IN vin2a_hsync0 - - - -
E11 vout1_vsync 1665 0 1881 0 CFG_VOUT1_VSYNC_IN vin2a_vsync0 - - - -
  1. Some signals listed are manual functions that present alternate multiplexing options. These manual functions are controlled via CTRL_CORE_ALT_SELECT_MUX or CTRL_CORE_VIP_MUX_SELECT registers. For more information on how to use these options, please refer to Device TRM, Chapter Control Module, Section Pad Configuration Registers.

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-11Manual Functions Mapping for VIN1B (IOSET6/7) for a definition of the Manual modes.

Table 7-11 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-11 Manual Functions Mapping for VIN1B (IOSET6/7)

BALL BALL NAME VIP_MANUAL9 VIP_MANUAL14 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 5 6
R6 gpmc_a0 1873 702 2202 441 CFG_GPMC_A0_IN - vin1b_d0
T9 gpmc_a1 1629 772 2057 413 CFG_GPMC_A1_IN - vin1b_d1
N9 gpmc_a10 0 0 0 0 CFG_GPMC_A10_IN - vin1b_clk1
P9 gpmc_a11 1851 1011 2126 856 CFG_GPMC_A11_IN - vin1b_de1
P4 gpmc_a12 2009 601 2289 327 CFG_GPMC_A12_IN - vin1b_fld1
T6 gpmc_a2 1734 898 2131 573 CFG_GPMC_A2_IN - vin1b_d2
T7 gpmc_a3 1757 1076 2106 812 CFG_GPMC_A3_IN - vin1b_d3
P6 gpmc_a4 1794 893 2164 559 CFG_GPMC_A4_IN - vin1b_d4
R9 gpmc_a5 1726 853 2120 523 CFG_GPMC_A5_IN - vin1b_d5
R5 gpmc_a6 1792 612 2153 338 CFG_GPMC_A6_IN - vin1b_d6
P5 gpmc_a7 2117 610 2389 304 CFG_GPMC_A7_IN - vin1b_d7
N7 gpmc_a8 1758 653 2140 308 CFG_GPMC_A8_IN - vin1b_hsync1
R4 gpmc_a9 1705 899 2067 646 CFG_GPMC_A9_IN - vin1b_vsync1
U4 mdio_d 1945 671 2265 414 CFG_MDIO_D_IN vin1b_d0 -
V1 mdio_mclk 255 119 337 0 CFG_MDIO_MCLK_IN vin1b_clk1 -
U5 rgmii0_rxc 2057 909 2341 646 CFG_RGMII0_RXC_IN vin1b_d5 -
V5 rgmii0_rxctl 2121 1139 2323 988 CFG_RGMII0_RXCTL_IN vin1b_d6 -
W2 rgmii0_rxd0 2070 655 2336 340 CFG_RGMII0_RXD0_IN vin1b_fld1 -
V4 rgmii0_rxd3 2092 1357 2306 1216 CFG_RGMII0_RXD3_IN vin1b_d7 -
W9 rgmii0_txc 2088 1205 2328 1079 CFG_RGMII0_TXC_IN vin1b_d3 -
V9 rgmii0_txctl 2143 1383 2312 1311 CFG_RGMII0_TXCTL_IN vin1b_d4 -
V6 rgmii0_txd1 2078 1189 2324 1065 CFG_RGMII0_TXD1_IN vin1b_vsync1 -
U7 rgmii0_txd2 1928 1125 2306 763 CFG_RGMII0_TXD2_IN vin1b_hsync1 -
V7 rgmii0_txd3 2255 971 2401 846 CFG_RGMII0_TXD3_IN vin1b_de1 -
V2 uart3_rxd 1829 747 2220 400 CFG_UART3_RXD_IN vin1b_d1 -
Y1 uart3_txd 2030 837 2324 568 CFG_UART3_TXD_IN vin1b_d2 -

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-12Manual Functions Mapping for VIN1B (IOSET5) and VIN2B (IOSET2) for a definition of the Manual modes.

Table 7-12 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-12 Manual Functions Mapping for VIN1B (IOSET5) and VIN2B (IOSET2)

BALL BALL NAME VIP_MANUAL10 VIP_MANUAL11 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 4(1) 4(1) 6(1) 6(1)
K7 gpmc_a19 1600 943 2023 477 CFG_GPMC_A19_IN - - vin2b_d0 vin1b_d0
M7 gpmc_a20 1440 621 1875 136 CFG_GPMC_A20_IN - - vin2b_d1 vin1b_d1
J5 gpmc_a21 1602 1066 2021 604 CFG_GPMC_A21_IN - - vin2b_d2 vin1b_d2
K6 gpmc_a22 1395 983 1822 519 CFG_GPMC_A22_IN - - vin2b_d3 vin1b_d3
J7 gpmc_a23 1571 716 2045 200 CFG_GPMC_A23_IN - - vin2b_d4 vin1b_d4
J4 gpmc_a24 1463 832 1893 396 CFG_GPMC_A24_IN - - vin2b_d5 vin1b_d5
J6 gpmc_a25 1426 1166 1842 732 CFG_GPMC_A25_IN - - vin2b_d6 vin1b_d6
H4 gpmc_a26 1362 1094 1797 584 CFG_GPMC_A26_IN - - vin2b_d7 vin1b_d7
H5 gpmc_a27 1283 809 1760 338 CFG_GPMC_A27_IN - - vin2b_hsync1 vin1b_hsync1
N6 gpmc_ben0 1978 780 2327 389 CFG_GPMC_BEN0_IN - - vin2b_de1 vin1b_de1
M4 gpmc_ben1 0 0 0 0 CFG_GPMC_BEN1_IN vin2b_clk1 vin1b_clk1 vin2b_fld1 vin1b_fld1
H6 gpmc_cs1 1411 982 1857 536 CFG_GPMC_CS1_IN - - vin2b_vsync1 vin1b_vsync1
  1. Some signals listed are manual functions that present alternate multiplexing options. These manual functions are controlled via CTRL_CORE_ALT_SELECT_MUX or CTRL_CORE_VIP_MUX_SELECT registers. For more information on how to use these options, please refer to Device TRM, Chapter Control Module, Section Pad Configuration Registers.

Manual IO Timings Modes must be used to guaranteed some IO timings for VIP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Manual IO Timings Modes. See Table 7-13Manual Functions Mapping for VIN1A (IOSET8/9/10) for a definition of the Manual modes.

Table 7-13 lists the A_DELAY and G_DELAY values needed to calculate the correct values to be set in the CFG_x registers.

Table 7-13 Manual Functions Mapping for VIN1A (IOSET8/9/10)

BALL BALL NAME VIP_MANUAL15 VIP_MANUAL16 CFG REGISTER MUXMODE
A_DELAY (ps) G_DELAY (ps) A_DELAY (ps) G_DELAY (ps) 7 9
AC5 gpio6_10 2131 2198 2170 2180 CFG_GPIO6_10_IN - vin1a_clk0
AB4 gpio6_11 3720 2732 4106 2448 CFG_GPIO6_11_IN - vin1a_de0
C14 mcasp1_aclkx 2447 0 3042 0 CFG_MCASP1_ACLKX_IN vin1a_fld0 -
G12 mcasp1_axr0 3061 0 3380 292 CFG_MCASP1_AXR0_IN vin1a_vsync0 -
F12 mcasp1_axr1 3113 0 3396 304 CFG_MCASP1_AXR1_IN vin1a_hsync0 -
B13 mcasp1_axr10 2803 0 3362 0 CFG_MCASP1_AXR10_IN vin1a_d13 -
A12 mcasp1_axr11 3292 0 3357 546 CFG_MCASP1_AXR11_IN vin1a_d12 -
E14 mcasp1_axr12 2854 0 3145 320 CFG_MCASP1_AXR12_IN vin1a_d11 -
A13 mcasp1_axr13 2813 0 3229 196 CFG_MCASP1_AXR13_IN vin1a_d10 -
G14 mcasp1_axr14 2471 0 3053 0 CFG_MCASP1_AXR14_IN vin1a_d9 -
F14 mcasp1_axr15 2815 0 3225 201 CFG_MCASP1_AXR15_IN vin1a_d8 -
B12 mcasp1_axr8 2965 0 3427 83 CFG_MCASP1_AXR8_IN vin1a_d15 -
A11 mcasp1_axr9 3082 0 3253 440 CFG_MCASP1_AXR9_IN vin1a_d14 -
D14 mcasp1_fsx 2898 0 3368 139 CFG_MCASP1_FSX_IN vin1a_de0 -
A19 mcasp2_aclkx 2413 0 2972 0 CFG_MCASP2_ACLKX_IN vin1a_d7 -
C15 mcasp2_axr2 2478 0 3062 0 CFG_MCASP2_AXR2_IN vin1a_d5 -
A16 mcasp2_axr3 2806 0 3175 242 CFG_MCASP2_AXR3_IN vin1a_d4 -
A18 mcasp2_fsx 2861 78 2936 599 CFG_MCASP2_FSX_IN vin1a_d6 -
B18 mcasp3_aclkx 1583 0 1878 0 CFG_MCASP3_ACLKX_IN vin1a_d3 -
B19 mcasp3_axr0 2873 0 3109 375 CFG_MCASP3_AXR0_IN vin1a_d1 -
C17 mcasp3_axr1 1625 1400 2072 1023 CFG_MCASP3_AXR1_IN vin1a_d0 vin1a_fld0
F15 mcasp3_fsx 2792 0 3146 257 CFG_MCASP3_FSX_IN vin1a_d2 -
C18 mcasp4_aclkx 1547 268 1776 0 CFG_MCASP4_ACLKX_IN - vin1a_d15
G16 mcasp4_axr0 2362 587 2815 193 CFG_MCASP4_AXR0_IN - vin1a_d13
D17 mcasp4_axr1 2326 667 2769 304 CFG_MCASP4_AXR1_IN - vin1a_d12
A21 mcasp4_fsx 924 2573 1338 2219 CFG_MCASP4_FSX_IN - vin1a_d14
AA3 mcasp5_aclkx 3731 2106 4130 1708 CFG_MCASP5_ACLKX_IN - vin1a_d11
AB3 mcasp5_axr0 3800 3013 4159 2776 CFG_MCASP5_AXR0_IN - vin1a_d9
AA4 mcasp5_axr1 3828 2951 4179 2733 CFG_MCASP5_AXR1_IN - vin1a_d8
AB9 mcasp5_fsx 3675 2447 4074 2142 CFG_MCASP5_FSX_IN - vin1a_d10
AD4 mmc3_clk 3907 2744 4260 2450 CFG_MMC3_CLK_IN - vin1a_d7
AC4 mmc3_cmd 3892 2768 4242 2470 CFG_MMC3_CMD_IN - vin1a_d6
AC7 mmc3_dat0 3786 2765 4156 2522 CFG_MMC3_DAT0_IN - vin1a_d5
AC6 mmc3_dat1 3673 2961 4053 2667 CFG_MMC3_DAT1_IN - vin1a_d4
AC9 mmc3_dat2 3818 2447 4209 2096 CFG_MMC3_DAT2_IN - vin1a_d3
AC3 mmc3_dat3 3902 2903 4259 2672 CFG_MMC3_DAT3_IN - vin1a_d2
AC8 mmc3_dat4 3905 2622 4259 2342 CFG_MMC3_DAT4_IN - vin1a_d1
AD6 mmc3_dat5 3807 2824 4167 2595 CFG_MMC3_DAT5_IN - vin1a_d0
AB8 mmc3_dat6 3724 2818 4123 2491 CFG_MMC3_DAT6_IN - vin1a_hsync0
AB5 mmc3_dat7 3775 2481 4159 2161 CFG_MMC3_DAT7_IN - vin1a_vsync0
D18 xref_clk0 1971 0 2472 0 CFG_XREF_CLK0_IN vin1a_d0 -
E17 xref_clk1 0 192 0 603 CFG_XREF_CLK1_IN vin1a_clk0 -
